HC201 LED controller for Pixel Lights,rgb led pixel controlleR

HC201SInstructions

HC201SFeature

1, The controller is designed for WS2801, WS2803, WS2811 Series LED constant current drive single-port controller IC design;

2, To support a variety of point, line, surface light source, and a variety of rules, profiled processing;

3, The supply voltage of 7.5V ~ 9V;

4, each controller with up to 2408 pixels;

5, support a single offline samples with multiple synchronous cascading two modes;

Note: when each controller with the number of pixels is less than 512, the playback speed of up to 50 frames / sec, more than 512 pixels, the playback speed automatically reduces with the increase in pixels. (Specific parameters are as follows: 512 points and up to 52 frames / sec minimum 23 / ??s, 1024 points up to 28 frames / sec minimum 15
Frames / sec, 1536 points up to 17 frames / sec, 2048 points up to 13 frames / sec.)

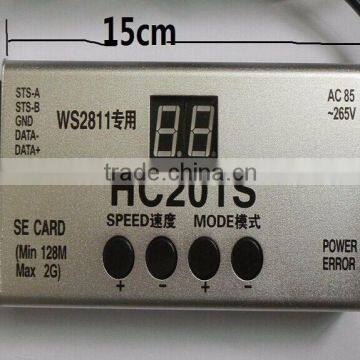

Controller appearance of the picture is as follows:

Shell silk screen corresponding port functions:

DC 7.5 ~ 9V controller powered port, standard 7.5V/0.5A power

DATA access data line

CLK then clock line

GND with signal ground

SYS-B multiple controller cascade all together SYS-B

SYS-A multiple controllers cascaded together, all SYS-A

SPEED

Four DIP switches, 16 adjustable speed

All slowest above, all in the ON position, the fastest

Power indicator

ERROR program reads the error indicator

SD CARD SD card position

Specific parameters:

Memory card

Type: SD Card

Capacity: can read SD card capacity up to 2G minimum 128M

Format: FAT32

Storage file types:. Lg

Controller:

Operating voltage: 7.5V ~ 9V

Power consumption: 0.5W

Single offline schematic diagram:

1, offline SD card playback

2, all the way to the signal output

3, can control up to 2048 pixels

4, the effect can be edited

5, control two-IC (WS2801, WS2803), then the three lines to the lamps, as DATA, CLK, GND;

Then two lines to the control of a single-line IC (WS2811) lamps, respectively DATA and GND.
Multiple synchronous cascade use:

1, offline SD card playback;

2, each controller corresponding to an SD card there is a corresponding program, the program is automatically generated by the PC software;

3, multi-station machine in only a host program decisions in the SD card, the other is a slave;

4, cascading distance of over 150 meters must be added to the signal relay amplifier, the cascade using SD card must be the same size;

5, control-wire IC (WS2801, WS2803) by three lines to the fixtures, as DATA, CLK, GND, single-line IC (WS2811) by two wires to lamps respectively DATA and GND, all controllers synchronization line (SYS-A, SYS-B) and joined together.

Note:

1, the file is copied to the SD card, SD card must be formatted as FAT32.

2, SD card is not hot-swappable, each waiting SD card need to first off the power to the controller

Controller light off represents the mean:

1, power indicator for power supply indicator, normally energized as always;

2, error indicator for instant power-controller is working properly lit for about a second, and then goes off;

3, users experience the following:

1 Error indicator light may not plugged the SD card or SD card formatting error (correctly as FAT32) or SD deck damage;

2 Error indicator flashes, SD card inside the program, or the program is wrong;

Extended functionality:

1, the controller can be extended to the remote control function;

2, the controller can be extended to the band DXM512 signal;

3, the controller can be extended to the function of a differential signal output;

Note: The above three extended functionality required to make reservations in advance to order.
