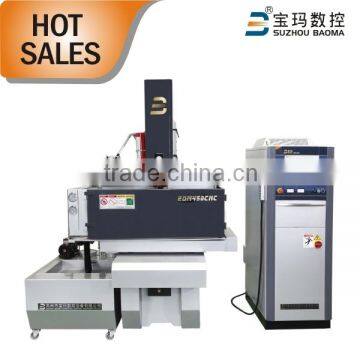

EDM350ZNC/High quality/High precision/Best price/Fast speed/fishing sinker machine/spark erosion machine/edm machine

Main Application

EDM sinker machine is used for cavity forming. It utilizes conductive material (copper, graphite, steel) as electrode to process workpiece (conductive material) by spark erosion. Main use: processing precious die, cavity mold and so on. It is widely used in metal processing and mold making workshop.

Our company's EDM series machines are featured in strong functions, convenient and reliable operation, of fairly good rigidity, running placidly, of good controllability, suitable to process conductive metal moulds, complicated metal parts and templates with high precision, high toughness and difficult processing. EDM process has become the important part in the field of mechanical manufacture. They are widely used in the fields of moulds, electronic instruments, precision mechanical process, automobile parts, military, etc.

ZNC EDM SINKER

1. Adopt Japan SANYO FC servo motor.
2. Steady safety device, optical sensors, auto answer, fire extinguisher and power cut off.
3. Good machine structure , high rigidity ,high precision , adopt V slide design.
4. Adopt HT300 ageing treatment casting ,keep precision long time.
5. Adopt high quality imported oil pump.
6. Three-axis linear scale;
7. Can choose red oil, pumping oil slagging mode, but also choose not to dip the oil processing;
8. For copper, graphite, steel, on the cavity, and special shape holes machining
9.  Lubrication system uses recovery mode, rail lubrication action at once, and keep the look clean
10.  Moistureproof, Antirust, rust, gold plated K PCB board design



Standard Setup(On Machine Body)

	ID	ITEM		Unit	Quantity
	01	EDM Sinker Machine		Set	1
	02	LCD Monitor		Set	1
	03	Oil Tank and Pump		Group	1
	04	Z Axis DC Servo Motor		Piece	1
	05	Z Axis 220VAC reduce motor		Piece	1
	06	Manual Lubricator		Piece	1
	07	T Shape screw of Z axos linear guideway		Set	1
	08	Screw and Guideway of X/Y aixs		Set	2
	08	Woking lamp		Piece	1
	10	Dial indicator		PIECE	1

Accessories in Toolbox

	ID	Name		Unit	Quantity
	01	Tool box		Piece	1
	02	Chuck handle		Piece	1
	03	Chuck		Piece	1
	04	Plate pinch		Piece	2
	05	Trapezoid seat		Piece	2
	06	Foot Pad		Piece	5
	07	Screw of Foot Pad		Piece	5
	08	Magnetic base of flushing nozzle		Piece	2
	08	T groove nut		Piece	2
	10	Double end bolt		Piece	2
	11	Hexagon socket wrench		Set	1
	12	Automatic fire distinguisher		Piece	1
