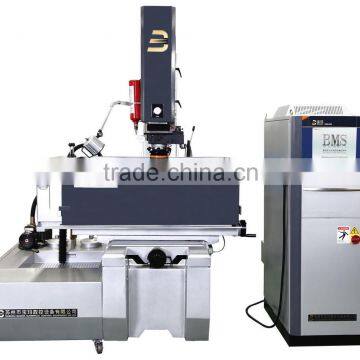

EDM650 sinker edm machine good quality from jiangsu Excellent
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Jiangsu, China | Brand Name | BAOMA | |
| Model Number | EDM650 | Voltage | 3N-380V/50HZ | |
| Power(W) | 18KVA | Dimension(L*W*H) | 2800*2100*2800MM | |
| Weight | 3500KGS | Certification | ISO9001 ISO 14001 | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
edm die sinking machine EDM650a)X/Y axis travel 650/550mm
b)Table Size (L*W):1100*650mm
c) Working tank: 1780*950*600mm
Professional supplier cnc edm die sinking machine EDM650
a)Product Description
EDM Die Sinking Machine [ EDM650 ]
A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece.
B. Steady circuit of big area electrode.
C. High and low clearance individual circuit.
D. PWM servo system, standard DC servo motor.
E. Synchronous discharge system of high voltage superposited.
F. Square wave and equal energy output.
G. Circuits of super-fine process.
H. Capacity of mirror process (negative pole
Parameters | UNIT | EDM650ZNC | |
Working Tank (LxWxH) | mm | 1780*950*600 | |
|
|
| |
Table Size (LxW) | mm | 1100*650 | |
Travel Size | X | mm | 650 |
Y | mm | 550 | |
Spindle Travel(Z) | mm | 300 | |
Auxiliary Travel(Z) | mm | 300 | |
Distance between Spindle | Min. | mm | 205 |
Max. | mm | 790 | |
Max. Table Load (Workpiece weight) | mm | 2800 | |
Max. Spindle Hold (Electrode weight) | kg | 250 | |
Oil Tank | L | 1300 | |
Oil Tank Dimension (LxWxH) | mm |
1780*950*600
| |
Control Method |
| DC (Japan SANYO) | |
Rated Current | A | 60 | |
Machine Dimension (LxWxH) | mm | 2800 x 2100 x 2800 | |
Machine Weight | kg | 3500 | |
PACKING: | |
|
|
c)CERTIFICATE
ISO14001:2004
GB/T 24001-2004
ISO9001:2008
GB/T 19001-2008
CE CERTIFICATE:
SGS TEST
OUR WORLD EXPOSITION
EGYPT:
BRAZIL:
BEI JING:
INDIA:
