Home > Products > DIE SINKING EDM > EDM sinker machine professional supplier high quality die sinking mould EDM or forming machine

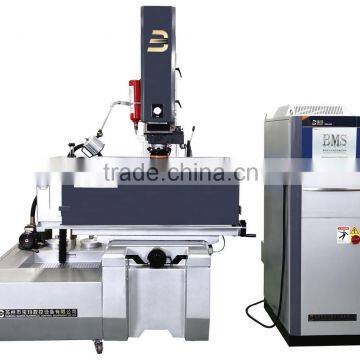

EDM sinker machine professional supplier high quality die sinking mould EDM or forming machine

FOB Price

US$ 1,000 - 80,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Place of Origin	Jiangsu, China	Brand Name	BAOMA
Model Number	EDM450	Voltage	3N-380V/50HZ
Power(W)	18KVA	Dimension(LWH)	180015002200MM
Weight	1800KGS	Certification	ISO9001 ISO 14001
Warranty	12 months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

edm die sinking machine EDM450
a)X/Y axis travel 450/300mm
b)Working Tank (L*W*H):1200*650*450mm
c)Table Size (L*W):700*400mm

Professional supplier cnc edm die sinking machine EDM450

a)Product Description

EDM Die Sinking Machine [ EDM450 ]
A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece.
B. Steady circuit of big area electrode.
C. High and low clearance individual circuit.
D. PWM servo system, standard DC servo motor.
E. Synchronous discharge system of high voltage superposited.
F. Square wave and equal energy output.
G. Circuits of super-fine process.
H. Capacity of mirror process (negative pole

Parameters		UNIT	EDMN450ZNC
Working Tank (LxWxH)		mm	1200 x 650 x 450

Table Size (LxW)		mm	700 x 400
Travel Size	X	mm	450
	Y	mm	300
	Spindle Travel(Z)	mm	200
	Auxiliary Travel(Z)	mm	200
Distance between Spindle Nose to Work Table	Min.	mm	58
Distance between Spindle Nose to Work Table	Max.	mm	450
Max. Table Load (Workpiece weight)		mm	1000
Max. Spindle Hold (Electrode weight)		kg	150
Oil Tank		L	470
Oil Tank Dimension (LxWxH)		mm	1260 x 780 x 450
Control Method			DC (Japan SANYO)
Rated Current		A	60
Machine Dimension (LxWxH)		mm	1800 x 1500 x 2200
Machine Weight		kg	1800

PACKING:

c)CERTIFICATE

ISO14001:2004

GB/T 24001-2004

ISO9001:2008

GB/T 19001-2008

CE CERTIFICATE:

SGS TEST

OUR WORLD EXPOSITION

EGYPT:

BRAZIL:

BEI JING:

INDIA:
