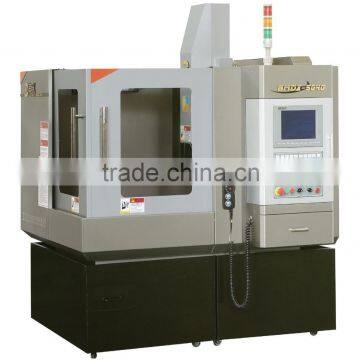

Baoma High Speed Cheap Cnc Milling Machine Bmdx5040

  cheap cnc milling machine
1.high speed spindle: 24000RPM
2.China CNC milling machine at lower price
3.CNC Engraving

CNC Engraving & Milling Machine BMDX5040 Parameters

1. Travel/space	X/Y/Z axis travel	mm	400/500/210
   Table upper surface to spindle nose end face		mm	80 - 290
   Accuracy	Positioning	mm	±0.005/300
   	Repeatability	mm	±0.003/300
   Table	Table dimension	mm	420x600
   	Max. load on table	Kg	200
   	Power(X Y Z)	Kw	0.75,0.75,0.75
   	T shape groove	mm	14TxP80x5
   Spindle	24000rpm / 2.2 kw / ER20 (tool diameter 3.175-12)
   Feeding speed	Rapid speed(X/Y/Z)	mm/min	7500
   	Cutting speed(X/Y/Z)	mm/min	6000
   Outer size and weight	Machine height	mm	1750
   	Floor space	mm	1600x1560
   	Net weight	Kg	2000
   Total input power		Kw	12



   The opening protector design makes big work piece loading easily.
2. In design we use the advanced finite element software to do dynamic simulation and construction analysis in order to ensure the machine possesses the best construction rigidity, machining precision and machining steady.
3. X, Y, Z use precision ball bearing screw, all have be hauled advance, that will ensure machine to get the best precision and make the position error to the lowest.
4. The slop bed and the big capacity water tank make scrap to be cleaned easily.
5. The one key to make sure the machining result excellent is high speed and precision spindle. The power source for small tool engraving comes from the electric motor of high speed and precision spindle. If you want to make the small tool working in good condition, the spindle electric motor has the follow characteristics: high speed rolling, small rolling shake, and small rolling noise.
6. Excellent design make the machine so good operation.
7. Using the advanced cooling-water machine to cool down the spindle, make sure the spindle keeping long life and machining having high precision.

Our company offer Taiwan SYNTEC, LNC and Germany PA system for the customer’s request, and try our best to offer you the best products.

Taiwan Syntec940i specialist control system
1. Be able to connect the man-machine communicated interface of Easy view and Digital
2. Wide range to connect with other equipment
3. Convenient to communicate through the figural interface
4. Convenient to renew the software through the mobile hard disk
5. Control several axes in different synchronous way by PLC
6. The function of video mending
7. Nice panel design and steady controller design

Packaging Detail: cheap cnc milling machine Plywooden cases
Delivery Detail: 30 days upon receipt of the payment

 Overseas service availiable
