Home > Products > Paper Cup & Plate Making Machinery > JXG-A automatic ice-cream paper cone machine

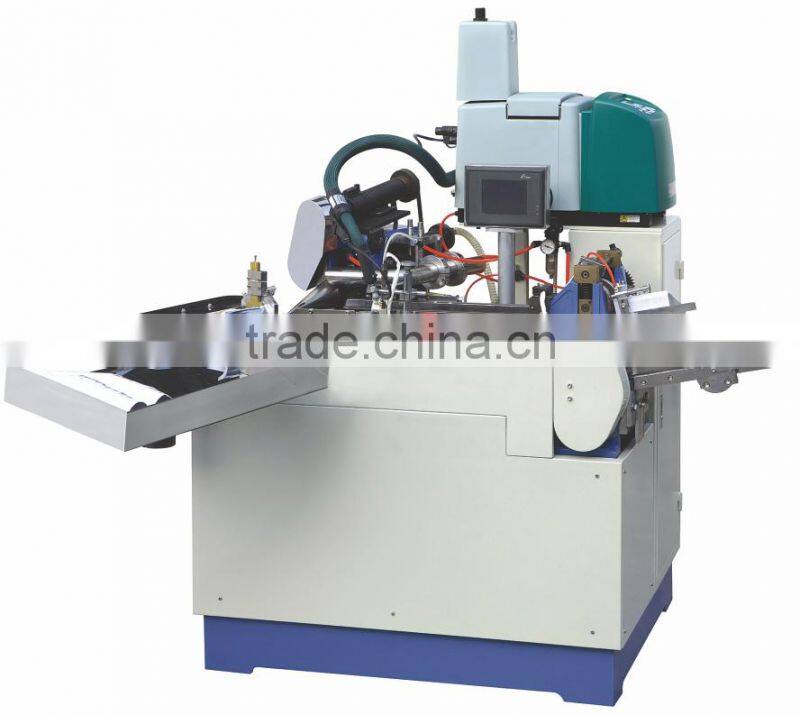

JXG-A automatic ice-cream paper cone machine
- 20 Set / Sets per Month
- Ningbo port or Shanghai port
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Product Type | Paper Cup Machine | |
| Processing Type | Paper Folding Machine | Place of Origin | Zhejiang, China | |
| Brand Name | Changs | Model Number | JXG-A | |
| Voltage | 380v | Power(W) | 5.5kw | |
| Dimension(L*W*H) | 1980*1710* 1800mm | Weight | 1200kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Work principle
A sucking nozzle will suck the paper, which has been printed previously, from the paper bracket to the transportation chain, and then transport it to the forming mould. During the transportation, the paper will be spread with thermosol. The position, length and quantity of thermosol can be adjusted during the production process without stopping the machine. After the formation, the paper spread with glue will be automatically blown to be transported to the collection machine. The pile and counting are automatic, and the paper will be carried out according to the pre-arranged pile numbers without stopping the machine.
FEATURES:
1).High efficiency, the maximum speed is 190 pcs/minute, with automatic counting of the finished product.
2).Small volume, occupying little space, with convenient installation.
3).Small load power of the machine, which is about 5.5 KW; speed regulation by frequency vibration, with high precision.
4).The transmission system adopts box type structure,with good rigidity and stability and high precision;oil circulation lubrication.
5).High automatic degree, simple operation and regulation, with convenient maintenance.
Technical data
Model | JXG-A |
Production capacity | The maximum speed can reach 190 PCS/minute |
Required paper | The ordinary paper, composite aluminum foil paper, no |
The parts for selection | 1. The control of thermosol spreading process 2. Air compressor |
Total power | 380v 50HZ 5.5KW |
Height & Angle | 70-255mm & 17°~ 28° |
Overall dimensions &Weight | 1980*1710* 1800mm & 1200 kg |
Main Configuration | 1).Glue Box:is adopted “Robatech ” from Switzerland 2).Electromagnetic valve: SMC 3).Transducer: DELTA 4).Counter: OMRON 5).Switch: OMRON 6).Relay: OMRON 7).Photocell eye: SCHNEIDER 8).AC contactor :SCHNEIDER |
1. Warranty
1 year limited warranty after installation.If the spare parts is broken in the warranty
period , we will send a free replacement parts to you .
2. Installation and Training
We can send 1-2 engineers to buyers factory to install and set up the machines and
training, but all the charges for the engineers should be paid by buyer.
3. Quotation
The quotation is available in 60 days
We have a professional transport channel
1.About us
Wenzhou Changs Machinery Co.,Ltd is one of the first company specialized in manufacturing printing machines, packing machines, plastic machine and paper converting machines,has owned export and import license since 2004.
To consider our full service convenience, we have set up service office and showing room at DRAGON-MART of Dubai to provide technical service for customers from Middle East and Africa in 2006, and also we have established technical support offices in Mexco, Egpty and Singapore, our service has satisfied with all of our customers. We enjoy sound reputation in oversea’s market and domestic.
2.Certificate
3. Cooperative partner
