Home > Products > RF Antennas > Ceiling Mount 700-960/1575-2700MHz LTE ANTENNA
Ceiling Mount 700-960/1575-2700MHz LTE ANTENNA
- Taiwan
You May Like
Product Details
| Place of Origin | Taiwan, China | Model Number | CA-0727-01 |
Product Description
Specifications
Ceiling Mount 700-960/1575-2700MHz LTE ANTENNAa.) Ceiling/Roof mount
b.) white or black color
c.) Low profile

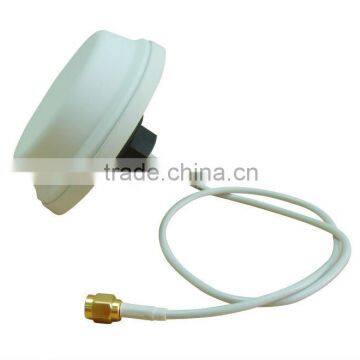

Ceiling Mount 700-960/1575-2700MHz LTE ANTENNA
Model :CA-0727-01
Description: 700-960/1575-2700MHz 1-4dBi Ceiling/Roof Screw+RG174(50CM)+SMA PLUG
Specification
1.Operating Frequency: 700-960/1575-2700MHz , Dual Band
2.Antenna Type: Ceiling Mount /Roof Screw
3.Gain: 1-4 dBi
4.VSWR: <= 2.3
5.Polarization: Linear Vertical
6.Temperature tolerance: -40 to 85 °C
7.Humidity: 40% to 95% RH
8.Connector: Optional (MMCX, MCX, SMA, BNC, SMB )
9.Cable: LOW LOSS CLF100 Length=30CM (Option)
10.Antenna Color: Black or White color (optional)
11.Dimension: L45xW80xH45mm
Chang Hong Technology is an ISO certified manufacturer with experiences exporting coaxial connector, cable assembly, wireless antenna, and WLAN accessory, etc....worldwide. Not only to provide quality products, we also provide competitive price and quick delivery to fulfill customer's need. Our service range includes OEM Service, Design Service, Buyer Label.
We believe you will be satisfied with our products if you are searching for a reliable supplier in this field.
