Home > Products > V1.4 /3D HDMI Splitter > 4K x 2K HDMI 1x2 Splitter
4K x 2K HDMI 1x2 Splitter
Negotiable
/ Piece
20 Pieces(Min. Order)
- ShenZhen or hongkong
- T/T Credit Card
You May Like
Product Details
| Brand Name | ASK | Model Number | HDSP0102N | |
| Place of Origin | Guangdong, China |
Product Description
Specifications
The splitter that support Full 3D,4k*2k.1.4V 1*2 port HDMI splitter with 4K*2K Supported

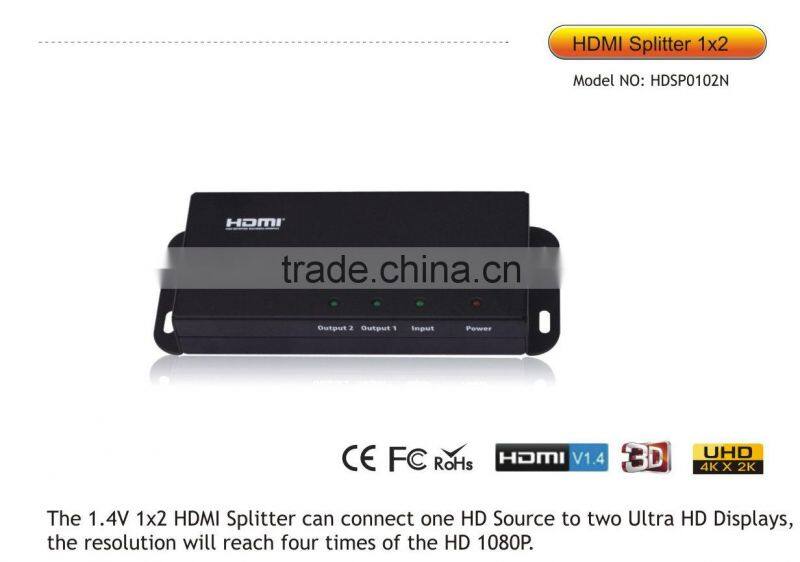

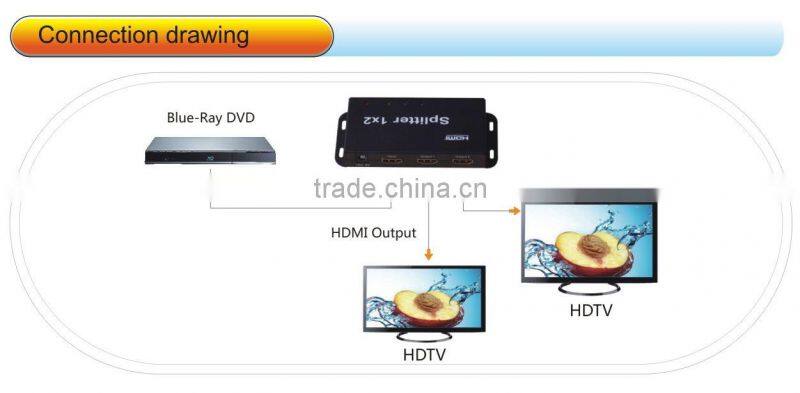

The 1x2 HDMI Splitter that supports Full HD 3D&4K*2K uses a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to two HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Specifications
| Model | HDSP0102N |
| HDMI Version | HDMI 1.4a |
| HDMI Resolution | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support video color format | 24bit/deep color 30bit,36bit, 48bit |
| Support audio format | DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR) |
| Max bandwidth | 340MHz |
| Max baud rate | 10.2Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
| Input cable distance | ≤15m AWG26 HDMI standard cable |
| Output cable distance | ≤20m AWG26 HDMI standard cable |
| Max working current | 1000mA |
| Power adapter format Input | AC (50HZ, 60HZ) :100V-240V; Output: DC5V/2A |
| Operating Temperature range | (-15 to +55℃) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 110X52X20(mm) |
| Weight | 141g |
