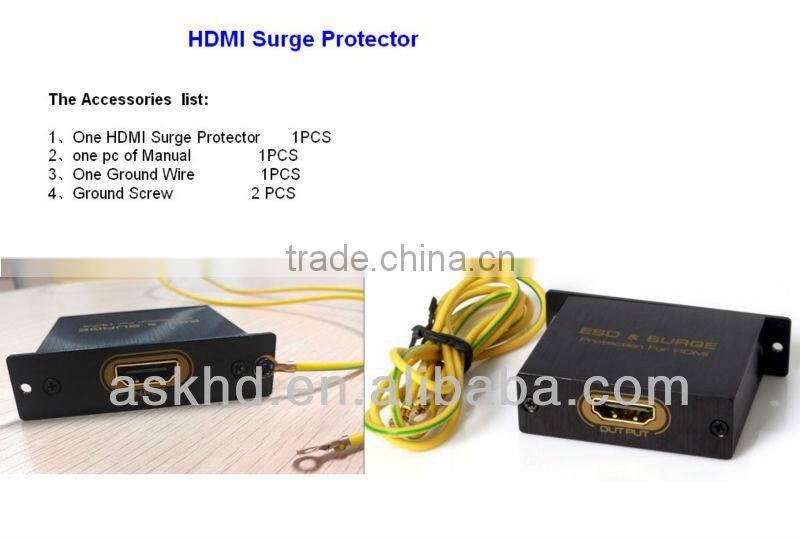

Mini HDMI Protector - Protection against ESD / Power Surge-HDMI 1.4, 3D, HDCP

FOB Price

Negotiable / Set

50 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	ASK
Model Number	HDEX001M1

Protect HDMI input and output for ESD and Lightning Surge
HDMI 1.4 with 3D ,4Kx2K,HEAC
Support HDCP
No Need Power Adptor

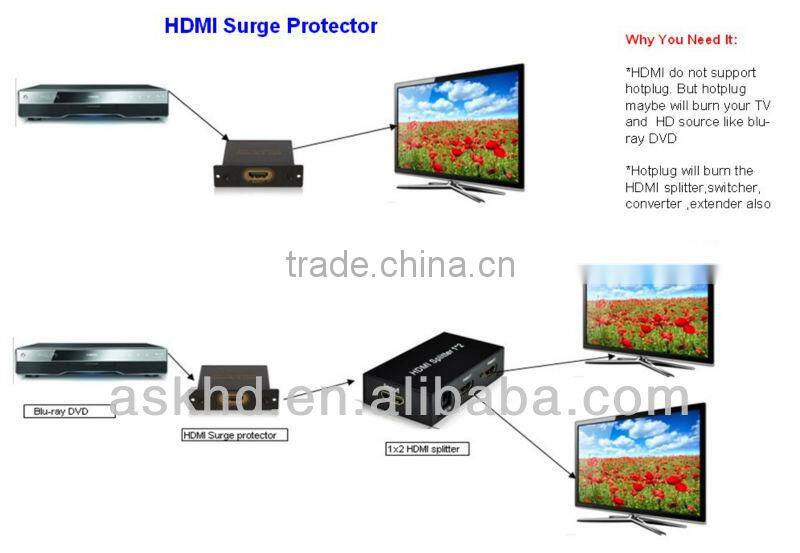

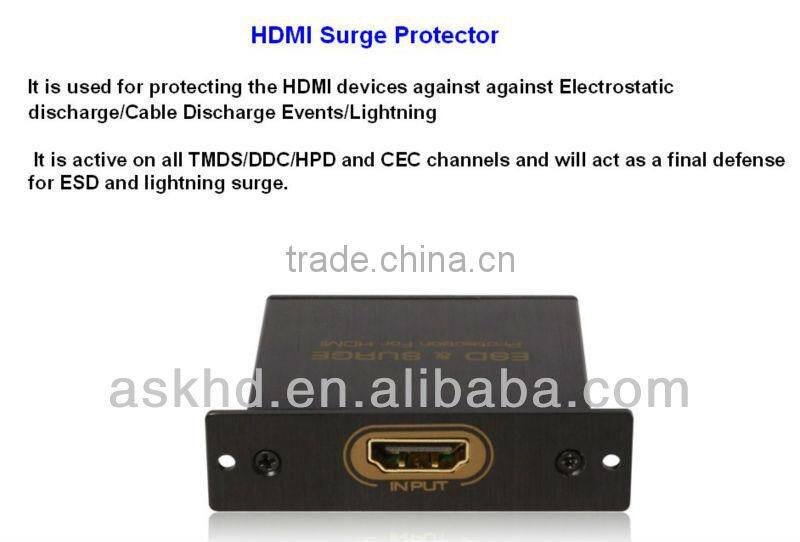

It is used for protecting the HDMI devices against against Electrostatic discharge/Cable Discharge Events/Lightning

It is active on all TMDS/DDC/HPD and CEC channels and will act as a final defense for ESD and lightning surge.

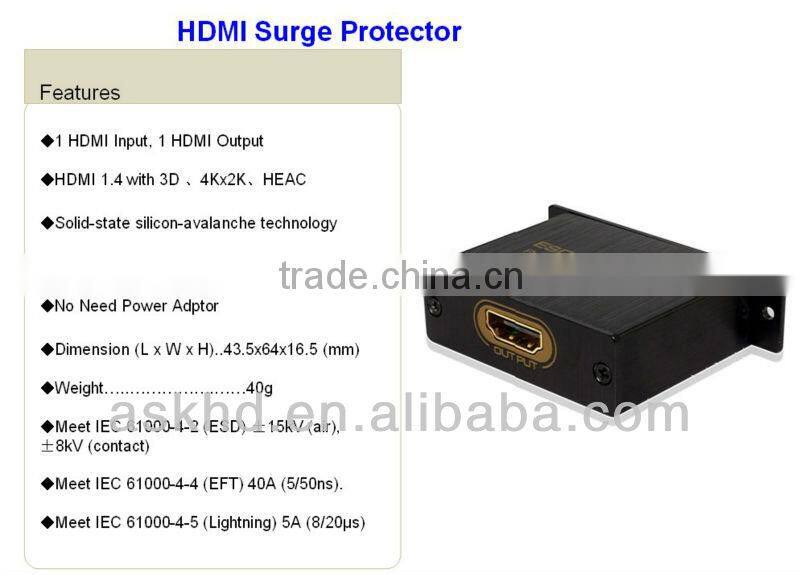

FEATUREs

Protect HDMI input and output for ESD and Lightning Surge

Meet IEC 61000-4-2 (ESD) ±15kV (air),±8kV (contact)

Meet IEC 61000-4-4 (EFT) 40A (5/50ns)

Meet IEC 61000-4-5 (Lightning) 5A (8/20µs)

support HDMI 1.4 with 3D,4Kx2K and HEAC

olid-state silicon-avalanche technology

support HDCP

No loss of quality

Installs in minutes

No Need Power Adptor
