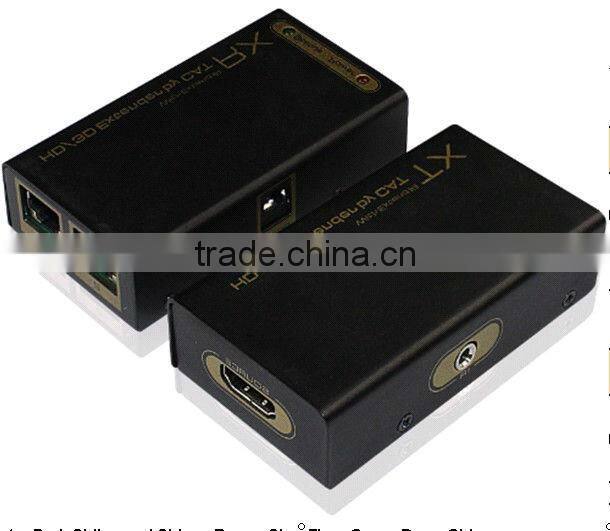

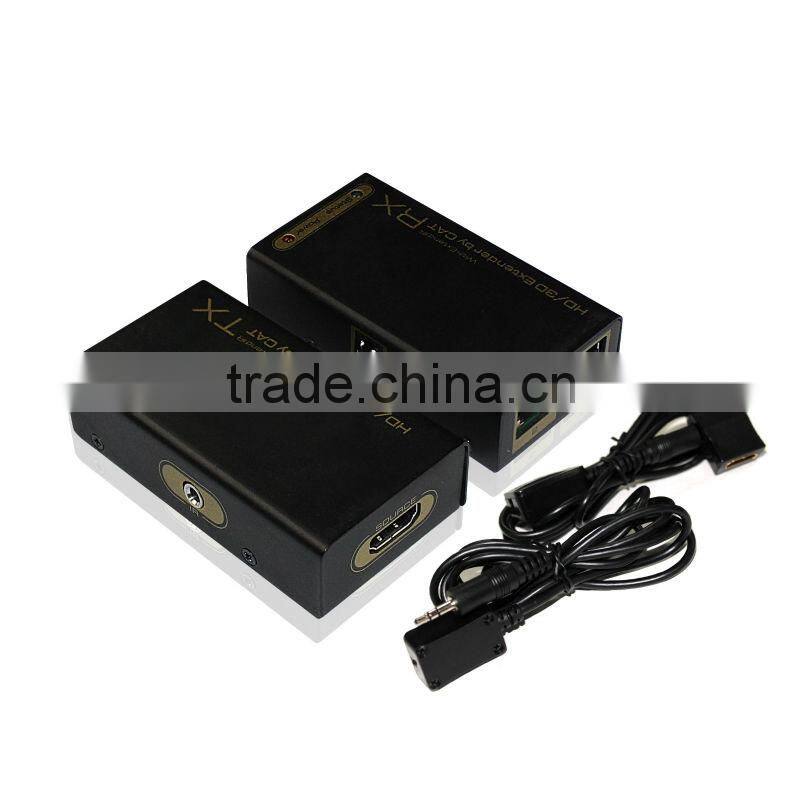

HDMI Extender 30M With IR Remote Control

Specifications

HDMI double cat5 Extender 30M with IR

The Extender use double cat-5E or cat-6(recommended) cables up to 30 meters instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

 FEATURES

*Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

*Signal transmission :Double cat-5e or cat-6(recommended) cables up to 30 meters

   instead of HDMI cables are connected between transmitter and receiver Extender.

*Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

*Support CEC

*Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

*LED indication: when power is supplied or device is working, LED relative to is light.

*Support up to 30 metres AWG26 cable length between extender and source & sink device

*No loss of quality

*Installs in minutes

*Need DC5V/1000mA power supply
