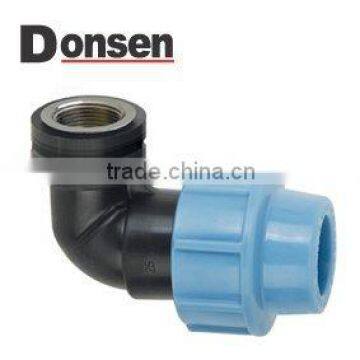

Female elbow with brass(pp compression fitting)
- Ningbo/Shanghai
You May Like
Product Details
| Material | Plastic | Type | Coupling | |
| Place of Origin | Zhejiang, China | Model Number | COD2021 | |
| Brand Name | DONSEN |
Product Description
Specifications
1) KOREA R200P raw material 8760 hours testing.2) Passed ISO9001:2000 and ISO14001:2004.
3) accordance with German Stand
1) KOREA R200P raw material 8760 hours testing.
2) Passed ISO9001:2000 and ISO14001:2004.
3) accordance with German Standard DIN8077-8078
4) CE certification
5) The product safe for drinking water test report
6) Brass insert database report
7) our ball valve brass fitting is Dovetail groove struction,it is strong than other factory
8) the material is Korea Import material,we don't use any recycle and Chinese material
Our Donsen factory supply PPR pipes and fittings,PPR pipes,PPR fittings and PPR pipe fittings.
Materials
Part | Material | Colour |
Body(A) | Polypropylene block copolymer(PP-B) of exceptional mechanical properties even at high temperature. | black |
Nut(B) | Polyprolene with dye master of high stability to UV rays and solidity to heat(8 grade according to standard DIN 54004) | blue(RAL5005) |
Clinching ring(C) | Polyacetal resin(POM)with high mechanical resistance white and hardness | white |
Blocking bush(D) | Polypropylene | black |
O Ring gasket(E) | Special elastomeric acrylonitrile rubber(NBR) for alimentary use | black |
Reinforcing ring | AISI 430(UNI X8Cr17,W.nr 14828)Stainless steel for female threads for 1-1/4”to 4” |
|
Sanitary Prescriptions:
The Compression fittings line is suitable for the conveyance of poyable water and alimentary fluids according to the most important national and international standards.
Working Pressures:
The Compression fittings allows the maximum working pressure (PN~PFA) of 16 bar(UNI 9562) at the temperature of 20°C.
Reference Standards:
Dimensions:UNI 9561
Working Pressure:UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Tubi in Polietilene(PE)/Polyethylene(PE)Pipes:
UNI 7990,DIN 8074,UNI EN 12201
Threads:UNI ISO 7/1,UNI EN 10226-1.ANSI ASME B1-20.1
Flanges:DIN 2501-1,UNI EN 1452-3,ISO 7005-2
