Product Details
| Place of Origin | Zhejiang, China | Brand Name | DONSEN | |
| Model Number | COD2021 | Material | PP | |
| Specification | 20-110MM | Length | HDPE Compression Fittings | |
| Thickness | HDPE Compression Fittings | Standard | HDPE Compression Fittings |
Product Description
Specifications
HDPE Compression FittingsWork pressure:PN16 for 20mm~110mm
Professional factory
OEM available
Easy & Quick installation
DONSEN is one of the professional manufacturer,specialized in producing plastic pipeline for water supply and irrigation system,which locates in Ningbo,Where is a developed and beautiful international port city.Having more than 10 years'experience in this field,We got high reputation from our customers in the world.
Our main products:

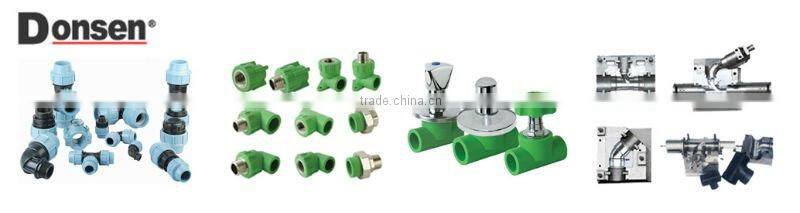

PP-R pipes and fittings,PP-R ball valves,PP-R stop valves,PP Compression fittings,Pipe fiting moulds etc.
Most of our products are exported to international market,such as Middle East,Europe,South American,Asia etc.Depend on high quality and high efficiency,we got the certificate ISO9001:2000 and ISO14001.
DONSEN PP Compression Fittings Brief
Since 1996,DONSEN has researched and manufactured for pipeline system,in keeping with the times and the pulse of market demand,Continuous innovation and to explore the unknown in the field.In 2007,Donsen had decided to develop PP compression fittings for water supply and drain.Although this product has much experience and foundation in European market,DONSEN has ability and confidence to protect the safety and reliability of our product on the basis of its strict and responsible attitude for quality and its skilled experience for the manufacture of other pipeline products.That's why we firmly believe our product quality.If you have any doubt,Please have a try.
DONSEN Compression Fittings:GUARANTEE FOR FAST,SIMPLE and SECURE CONNECTON

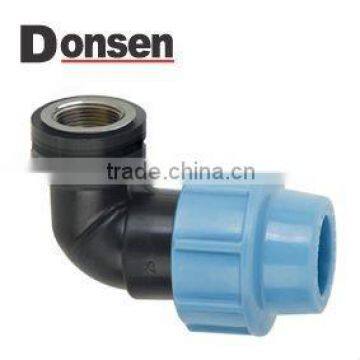

DONSEN PP Compression Fittings :
Materials
Part | Material | Colour |
Body(A) | Polypropylene block copolymer(PP-B) of exceptional mechanical properties even at high temperature. | black |
Nut(B) | Polyprolene with dye master of high stability to UV rays and solidity to heat(8 grade according to standard DIN 54004) | blue(RAL5005) |
Clinching ring(C) | Polyacetal resin(POM)with high mechanical resistance white and hardness | white |
Blocking bush(D) | Polypropylene | black |
O Ring gasket(E) | Special elastomeric acrylonitrile rubber(NBR) for alimentary use | black |
Reinforcing ring | AISI 430(UNI X8Cr17,W.nr 14828)Stainless steel for female threads for 1-1/4”to 4” |
|
Sanitary Prescriptions:
DONSEN PP Compression Fittings line is suitable for the conveyance of poyable water and alimentary fluids according to the most important national and international standards.
Working Pressures:
DONSEN PP Compression Fittings allow the maximum working pressure (PN~PFA) of 16 bar(UNI 9562) at the temperature of 20°C for diameters from 20mm to 110mm
Reference Standards:
Dimensions:UNI 9561
Working Pressure:UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Tubi in Polietilene(PE)/Polyethylene(PE)Pipes:
UNI 7990,DIN 8074,UNI EN 12201
Threads:UNI ISO 7/1,UNI EN 10226-1.ANSI ASME B1-20.1
Flanges:DIN 2501-1,UNI EN 1452-3,ISO 7005-2
