7MM Photocell (GL7528) LDR Photocell Resistor
- 1000000 Piece / Pieces per Month
- ShenZhen
- T/T Credit Card
You May Like
-
7MM GL7516 Light Sensor LDR for Street Lights Control With High Sensitivity
-
4MM GL4537-1 Visible Light Sensitive Resistor /LDR/CdS Photoresistor
-
10MM Outdoor (GL10528) Cds Light Sensor for Street Light, Factory Supply
-
5MM Small Size High Confirmity Cds Photoresistor Coated with Epoxy GL5528
-
Hot sale Indoor Cds Photoresistor for Light Control Switch GL5528
-
5MM High Conformity LDR Sensor for Electronic toy
Product Details
| Place of Origin | Guangdong, China | Brand Name | Senba | |
| Model Number | GL7528 | Type | Photoresistor | |
| Technology | Ceramic Composition | Package Type | Other, DIP | |
| Operating Temperature | -30~70 |
Product Description
Specifications
LDR Photocell1. High sensitivity,Fast response
2. Good spectrum characteristic
3. Factory Price
4. Sample Free

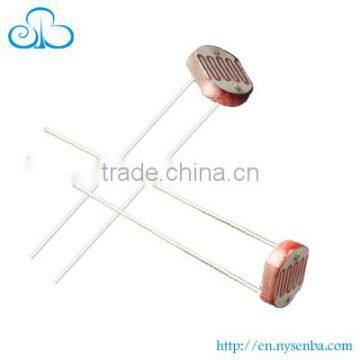

7MM Photocell (GL7528) LDR Photocell Resistor
7mm Ceramic Mini LDR photo sensor , best price from largest manufacurer
General Theory:
Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated area based on this characteristic........
Features for LDR Photocell
Coated with epoxy
Good Reliability
High Sensitivity
Small Volume
Fast Response
Good Spectrum Characteristic
Applications for LDR Photocell
Switch
Light control
Electronic toy
Light control lamp
Photoelectric control
Industrial control
Camera automatic photometry
Annunciator
Specifications for LDR Photocell
Specification | Type | Max. Voltage | Max. power | Environmental temp. | Spectrum peak value |
φ7 series | GL7516 | 150 | 100 | -30~+70°C | 540 |
GL7528 | 150 | 100 | -30~+70°C | 540 | |
GL7537-1 | 150 | 150 | -30~+70°C | 560 | |
GL7537-2 | 150 | 150 | -30~+70°C | 560 | |
GL7539 | 150 | 150 | -30~+70°C | 560 |
Specification | Light resistance (10Lux) (KΩ) | Dark resistance (MΩ) |
r100/10 | Response time (ms) | Illuminance resistance Fig. No. | |
Increase | Decrease | |||||
φ7 series | 5-10 | 0.5 | 0.6 | 30 | 30 | 3 |
10-20 | 1 | 0.6 | 30 | 30 | 3 | |
20-30 | 2 | 0.7 | 20 | 30 | 4 | |
30-50 | 4 | 0.8 | 20 | 30 | 4 | |
50-100 | 8 | 0.8 | 20 | 30 | 6 | |
Senba photo cell Sales summary (Unit:million sticks)
