pp pe Hdpe Bottle Single Station Blow Molding Machine
- Shanghai
- T/T
You May Like
-
Plastic Products Machine Manufacturer / Blow Moulding Machine
-
10 Litre Plastic Container Equipment , ,Automatic Blow Moulding Machine, Jerrycan Blow Molding Machine
-
Hdpe Cans Blow Molding Machine , Full Automatic Blow Moulding Machine
-
Hdpe Cans Blowing Machine, ,Automatic Blow Moulding Machine, Jerrycan Blow Molding Machine
-
Hdpe Cans Making Machine , Full Automatic Blow Moulding Machine
-
Oil Cans Blow Molding Machine, Automatic Blow Moulding Machine, Jerrycan Blow Molding Machine
Product Details
| Condition | New | Application | Other, PE bottle, jerrycan | |
| Plastic Processed | Other, PE, PP, PVC, PC, ABS | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | LONGWAYS | Model Number | LWB75D | |
| Voltage | 380V,440V,415V,220V | Power(W) | 65KW | |
| Dimension(L*W*H) | 4000*2300*2700mm | Weight | 6T | |
| Certification | CE | Warranty | 24 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
, A wide variety of materials can be used for the single station blow molding machine , which are suitable for producing 100ml to 5L PE bottle. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.
single station blow molding machine production process
single station blow molding machine specification
Unit | Item | Specification | Description |
Extruding system | Screw diameter | Φ80mm | Mixing model |
Max. Product Volume | 10L | Double station and single die-head | |
Screw L/D | 24:1 |
| |
Material of screw and barrel |
| High nitrogen steel 38CrMoAlA, nitrogen treatment, hardness HV700-840, brittle ≤ 2 level | |
Plasticizing capacity | 100KG/Hr | Based on HDPE 5502 | |
Extruding method |
| Inverter motor, hardness tooth surface gear box | |
Driving power | 37KW |
| |
Screw revolution | 10—90rpm |
| |
Heating zones | 4 | Temperature module from Mitsubishi PLC | |
Heating power | 10KW | Solid state (SSR) and plug connection for all heaters | |
Blowers | 3 |
| |
Cooling function | Yes | Water cooling for feeding zone and gear box |

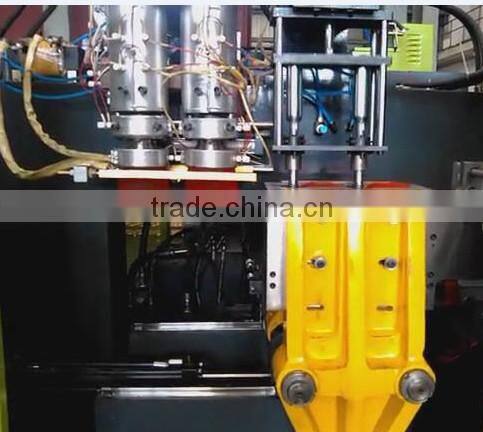

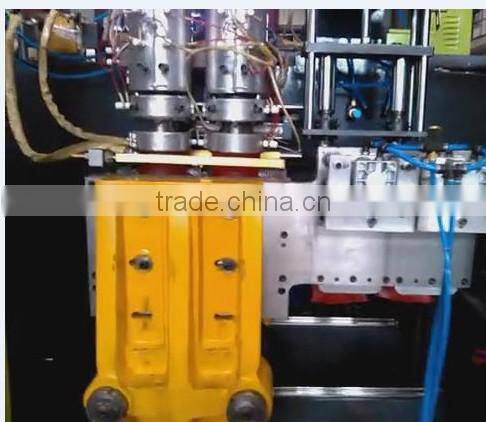

plastic jerrycan single station blow molding machine - die head
Extrusion line for production of plastics jerrycan plastic plasticing part

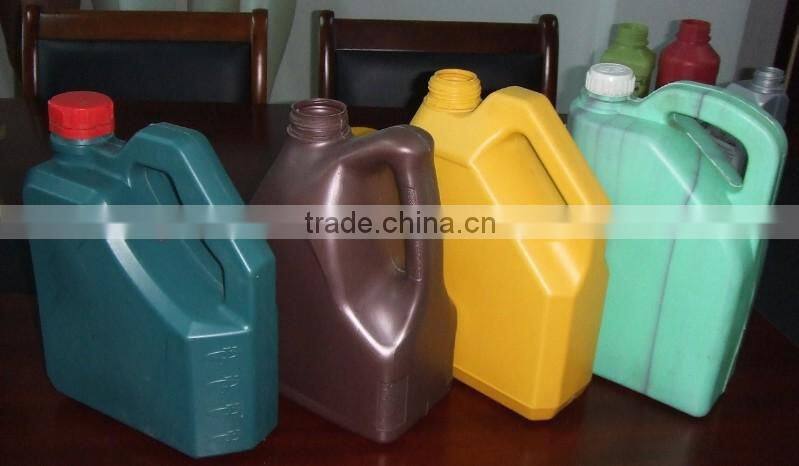

Extrusion line for production of plastics jerrycan product making step
Extrusion line for production of plastics jerrycan component brand
Extrusion PE jerrycan blow moulding machine loading
Any inuqiry about Extrusion line for production of plastics jerrycan , blow moulding machine, please contact us! thanks!
