5 L Plastic Jerry Can Production Blow Molding Machine
- Shanghai
- T/T
You May Like
-
8L Plastic Jerry Can Production Blow Molding Machine
-
Plastic Cans Making Machine , Full Auto Blow Molding Machine
-
Plastic Can Machine / Blow Moulding Machine
-
Professional Design and Custom Plastic Toys Mould , Hot Sale High Quality Plastic Injection Toy Mould
-
HDPE Lubricate Oil Cans Theft Ring Cap Mould / Customize Plastic Cap Inject Mould
-
16 Cavity Plastic Theft Ring Cap Mould / Customize Plastic Cap Inject Mould
Product Details
| Condition | New | Application | Other, PE bottle, jerrycan | |
| Plastic Processed | Other, PE, PP, PVC, PC, ABS | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | LONGWAYS | Model Number | LWB75 | |
| Voltage | 380V,440V,415V,220V | Power(W) | 65KW | |
| Dimension(L*W*H) | 4000*2300*2700mm | Weight | 6T | |
| Certification | CE | Warranty | 24 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
5L plastic jerry can production1, water pot with its cap
2, HDPE double color
4, single station
5, two screws
This is 5L plastic jerry can production blow molding machine , water pot bow molding machine, machine can blow double color bottle , A wide variety of materials can be used for the machine, which are suitable for producing 100ml to 4L PE water pot. The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, and automatic temperature control module and imported electrical parts.

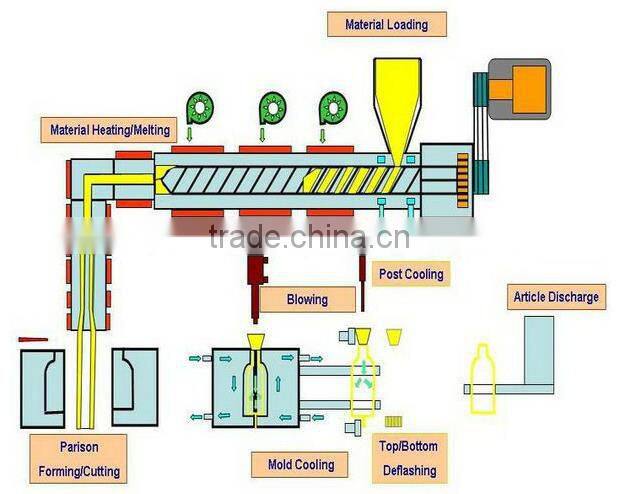

plastic jerry can production production process
PE double color blow moulding machine specification
Unit | Item | Specification | Description |
Extruding system | Screw diameter | Φ75mm and Φ 30mm | Mixing model |
Max. Product Volume | 5L | Double station and single die-head | |
Screw L/D | 24:1 |
| |
Material of screw and barrel |
| High nitrogen steel 38CrMoAlA, nitrogen treatment, hardness HV700-840, brittle ≤ 2 level | |
Plasticizing capacity | 80KG/Hr | Based on HDPE 5502 | |
Extruding method |
| Inverter motor, hardness tooth surface gear box | |
Driving power | 22KW |
| |
Screw revolution | 10-90rpm |
| |
Heating zones | 4 | Temperature module from Mitsubishi PLC | |
Heating power | 10KW | Solid state (SSR) and plug connection for all heaters | |
Blowers | 3 |
| |
Cooling function | Yes | Water cooling for feeding zone and gear box |

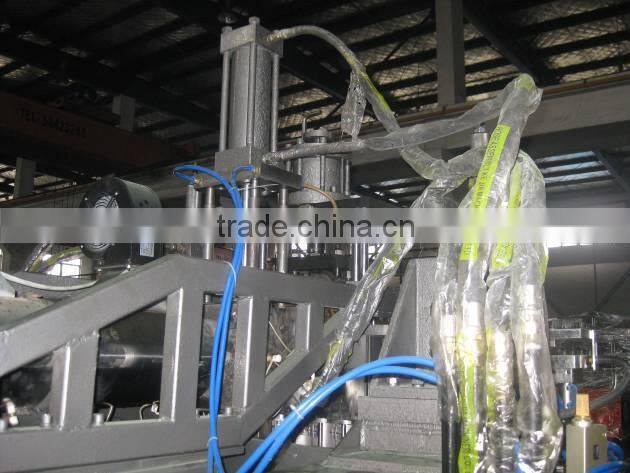

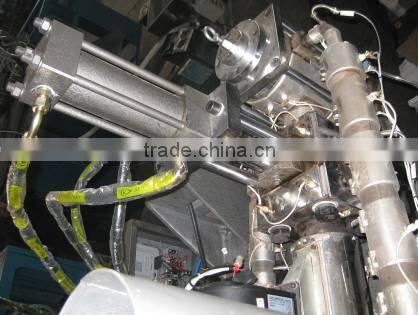

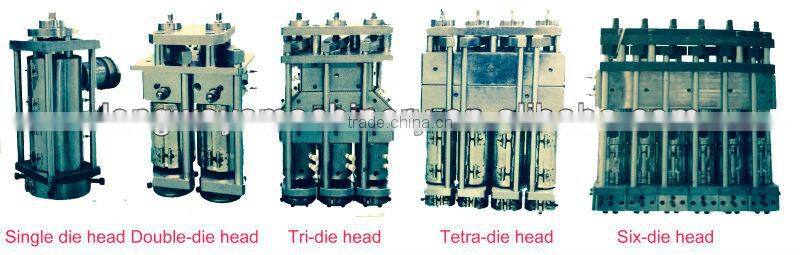

plastic jerrycan blow molding machine extruder- die head

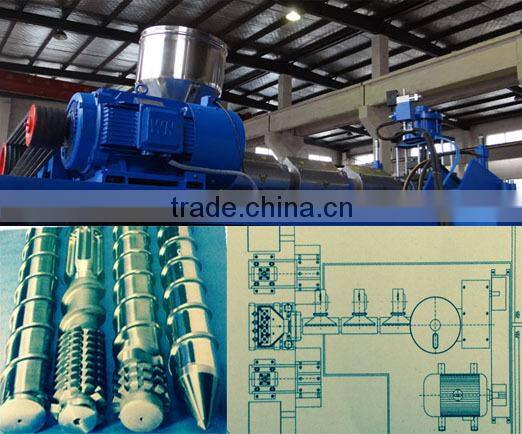

PE double color blow moulding machine plasticing part

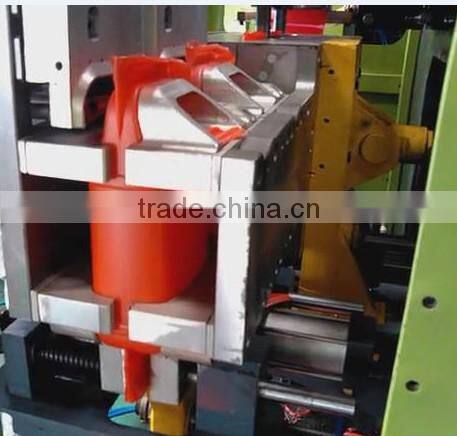

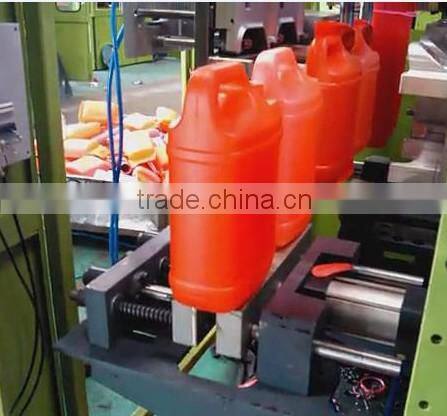

8L plastic jerry can production product making step
PE double color blow moulding machine component brand

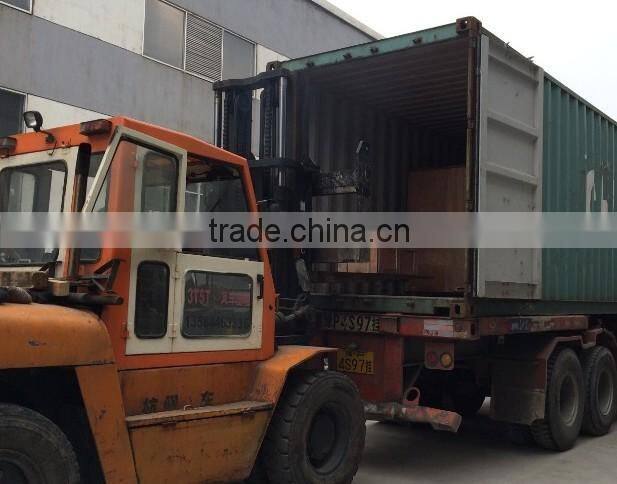

PE double color blow moulding machine loading
Any inuqiry about Extrusion PE double color blow moulding machine , blow moulding machine, please contact us! thanks!
