Home > Products > Thermal tape > Polyimide strong double sided tape High acrylic adhesive tape
Polyimide strong double sided tape High acrylic adhesive tape
- 100000 Square Meter / Square Meters per Month
- Shenzhen China
- T/T Credit Card
You May Like
-
Production Polyimide strong double sided tape application in Electronic devices
-
Production Wide temperature compliance Polyimide strong double sided tape
-
Manufacturer of Polyimide strong double sided tape Soft and compressible
-
Double sided electrically conductive adhesive tape Soft and compressible
-
Strong sticky adhesive Thermal conductive double sided tape insulation
-
Thermal conductive double sided tape insulation Soft and compressible 0.25mm
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZZX | |
| Model Number | Bond-Ply 660P | Type | Insulator | |
| Material | Other, Polyimide | Application | High Temperature | |
| Rated Voltage | 3200V | Tensile Strength | 25kg/25mm |
Product Description

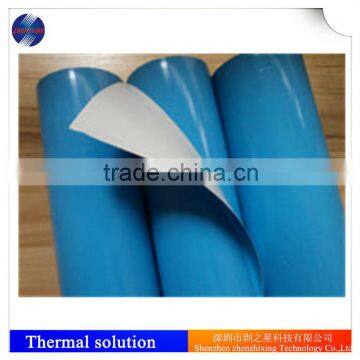

Polyimide strong double sided tape High acrylic adhesive tape
Features & benefits:
-High acrylic adhesive tape for pressure sensitive of various surfaces
-High-performance, thermally conductivity acrylic adhesive
Typical applications:
-Make the heat sink fixed to the encapsulated chip
-Make the radiator fixed to the power supply circuit board or the vehicle control circuit board
-Efficient thermal conductive acrylic adhesive
-Can replace the fixed mode of hot melt adhesive, screw and buckle
Features
.Thermally conductive
. Electrically isolating
. Soft and compressible
. Wide temperature compliance
. Strong sticky adhesive
. REACH, RoHS & UL compliant
Applications
. Electronic devices
. LED lightings
. Printings
. Hardware
. Power supply
. Others
Designed Size Offered
.Customized die cutting
Physical Properties:
Thickness | Unit(mm) | 0.15 | 0.20 | 0.25 | 0.30 |
Color | / | White | white | white | white |
Specific Gravity | G/cm3 | 1.8 | 1.8 | 1.8 | 1.8 |
Thermal conductivity | W/M.K | 0.8 | 0.8 | 0.8 | 0.8 |
Heat Resistance | °Cin2/W | 0.68 | 0.70 | 0.72 | 0.74 |
Breakdown Voltage | VAC/mm | 3200 | 4000 | 5000 | 5000 |
Application Temperature | °C | -30~+120 | -30~+120 | -30~+120 | -30~+120 |
Peel Adhesion | N/25mm | 10.2 | 12 | 14 | 16.4 |
Tack | N/25mm | 12 | 14.3 | 16.5 | 18.2 |
