Cement clinker 1000T/D limestone Rotary Kiln with competitive price

Cement clinker 1000T/D limestone Rotary Kiln with competitive price

Rotary Kiln Brief Introduction :

Rotary kiln is a direct heating type with rotary shell, which fires material through heat exchanging by contacting hot air (high temperature gas) generated by the burner provided at one end of the shell directly with the material. The shell internal wall is lined with firebricks for the shell protection subject to respective conditions. Furthermore, heatresisting bricks are used for the lining as needed. The flow directions of the material and hot air (high temperature gas) are countercurrent, in general. According to the applications, however, concurrent flow may be introduced or a hot air generation unit may be provided in addition. It is also possible to mix solid fuel in the material or to provide a self-combustion process in the kiln. Furthermore, perfect air sealing is provided at both ends of the kiln shell, which makes it possible to keep the kiln internal atmosphere acid, neutral, or reducible in accordance with the applications.

Types of rotary kiln:

Cement kiln;

Metallurgy chemical kiln;

Active lime kiln;

Porcelain kiln according;

Building material kiln;

Calcined petroleum coke rotary kiln.

Working principle of rotary kiln/rotary kiln for cement clinker

  1. Bucket elevator transports the wet material into the feeder.

 2.  Feeder sends the wet material into the rotary drier silo.

 3. Feeder cover keeps the materials not leaking and maintain the temperature of pulp.

 4. Drum dryer rotates slowly by motor power to heat material evenly.

 5. Lifting plate: through the rotating of transfer cylinder and the mixing of the lifting plate, the materials are heated fully and the water is evaporated.

 6  Dust blower.

 7.  Dust collector cyclone: the dust generated by the mixing of the dried material in the warehouse was discharged out through dust fan and dust collector cyclone,this drying way is environmental.

 8. Discharging cover maintains the temperature in the silo, discharge the dry materials orderly.

 9. Rotary discharging feeder: The dry materials are transported on the belt conveyor through rotary discharging feeder.

10. Belt conveyor: the dried materials are transported into product stock by the belt conveyor or directly bulked.

Application of rotary kiln:

Rotary kiln is mainly used for metallurgy, building materials, ores and other mineral materials, heating and calcining. Such as ceramic sand, bauxite, limestone, cement, fly ash magnesium aluminum hydroxide, aluminum products, alumina refractory materials such as mineral particles and the heating and calcined powder.

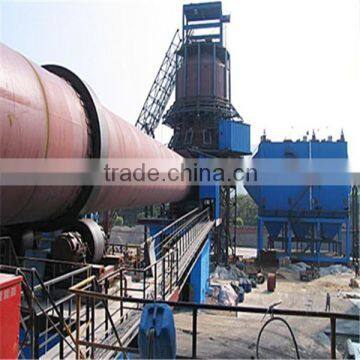

Dongfang factory workplace:

dongfang service--- rotary  kiln equipment :

  Delivery time: within 20 days after received your 40% down payment.

 Warranty:      One Year (Calculated from the goods arrived the destination port.)

If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis.

We can send our engineer to provide the installation and trial run in your place.

 But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).

We insist on "Quality is the soul of company" and take customers as our god,

owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team with 10 years experience. We devote to all-round service of all the products from shipment to maintenance.
Our professional service includes: Free training, Guidance Installation and Debugging.

We sincerely  welcome you to visit our factory and discuss the feasibility of cooperation.

If you are interested in our Cement clinker 1000T/D limestone Rotary Kiln with competitive price ,please feel free to contact with us at any time

Contact person: Rebecca Hong

 Tel : +86-371-67944555

  Fax: +86-371-67944555
