formwork/aluminium formwork/concrete formwork with high quality and rigidity

Specifications

Economic Climbing Formwork System CB210 with Adjustable Brace

Introduction

Plywood 18mm as the skin, timber beam H20 as the primary and secondary beam, steel prop or scaffolding as the support system.

Advantages:
Easy operation, save material and time.
High rigidity and repeat rate.
High standard components make low cost available.
The construction site is safe and fast.

H20 Timber Beam Specifications:

Adjustable Waterproof Climbing Formwork With High Bearing Capacity

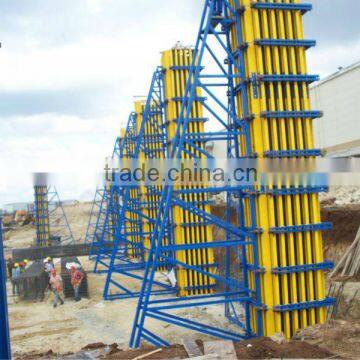

CB240 climbing system is mainly used for concrete pouring in the wall, the core wall, the pier, etc. They guarantee simple handling, fast concreting cycles and problem-free adjustment to different wall configurations.

Competitive Advantage:


1. High bearing capacity

The high loading capacity of the brackets allow very large scaffold units. This saves the number anchor points required as well as reducing climbing times.

2.Simple moving procedure by crane

Through the strong connection of formwork together with the climbing scaffold, both can be moved as a single climbing unit by crane. Thus valuable time-savings can be achieved.

3. Fast striking process without a crane

With the retrusive set, large formwork elements can also be retracted quickly and a minimum of effort.

4. Safe with work platform

The platforms have assembled firmly with bracket and will be climbing together, without scaffolding but can work safely in spite of your high location.


5. The inclination of formwork is adjustable by means of adjustable brace.

The brace is connected with formwork and bracket and the main function is guaranteeing the verticality of formwork by adjusting its length.

Package:

Applications:

As a kind of girder, it is an important constituent part for formwork and it is widely used in concrete formwork construction.
