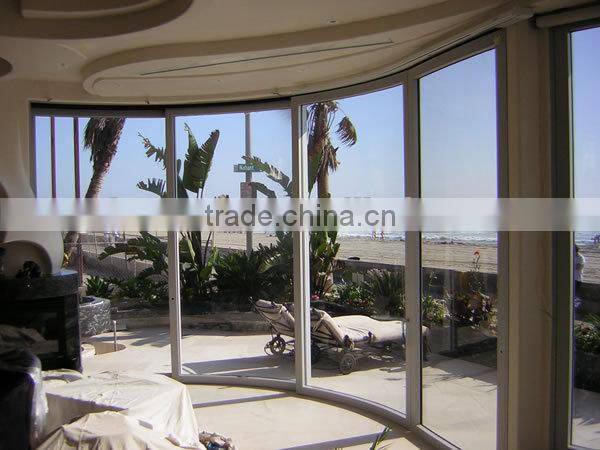

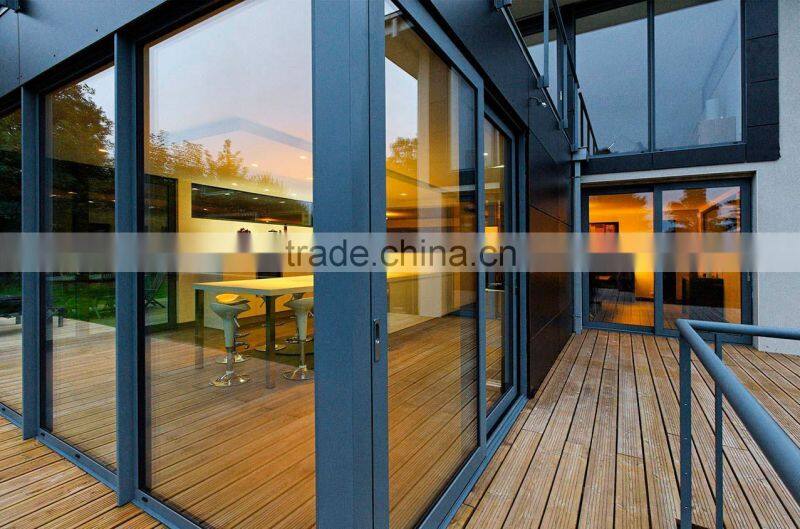

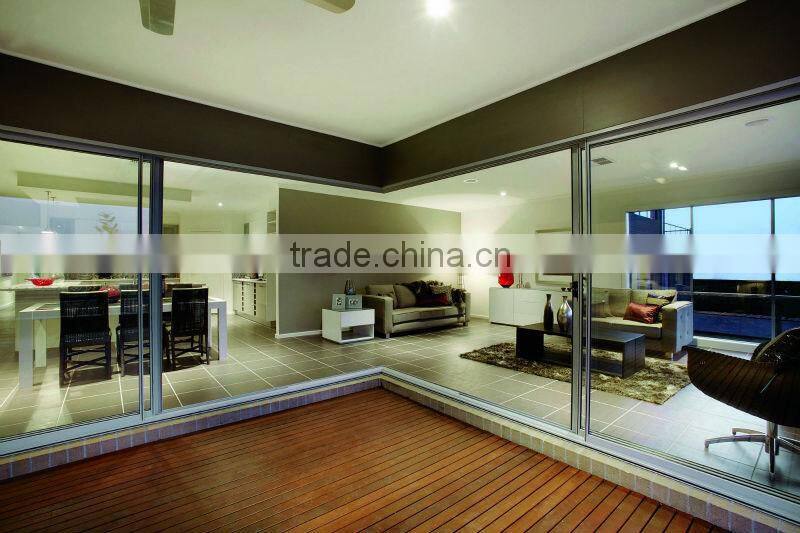

Aluminium sliding door with double glazing glass with large size

Aluminum sliding window Technical Data

Items

Description

Notes

1. Material

Aluminum 6063 T5 / 6063 T6

Customized

2. Profile thickness

1.2mm-2.0mm or thermal break aluminum

Customized

3. Surface treatment

Powder coating, Electrophoresis painting, Fluoro carbon painting

4. Glass specification

Low-E glass, Tempered glass, OBS glass, etc.

Customized

Thickness: 4mm, 5mm, 6mm, 8mm, etc.

Space: 6mm, 9mm, 12mm, 16mm, etc.

5. Hardware

Schuco, Kinlong or local brand

Customized

6. Color

Refer to the color card

Customized

7. Perforamcne parameters

Sounds insulation: GB/T 8485-2008

RW ≤ 28 dB

Wind pressure resistance: GB/T7106-2008

2.5~3.0Kpa

Air permeation resistance: GB/T7106-2008

0.5~1.0m³/(mh)

Water resistance: GB/T7106-2008

250~350Pa

Thermal insulating properties: GB/T8484-2008

K=2.5~3.0W/ (m ² K)

The horizontal tension: GB/T8478-2008

< 100N

8. Applicable place

House, apartment, hotel, office, etc.

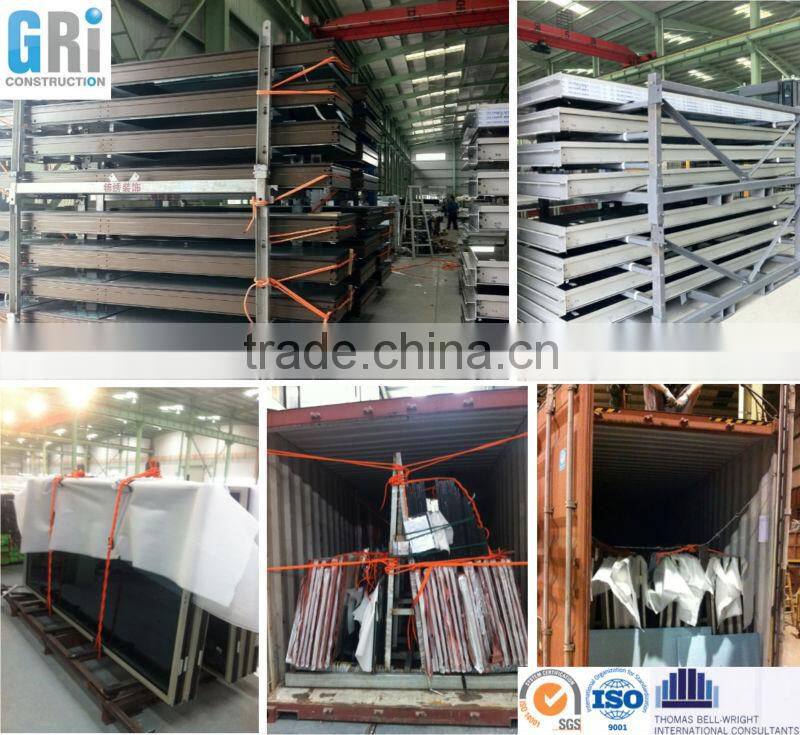

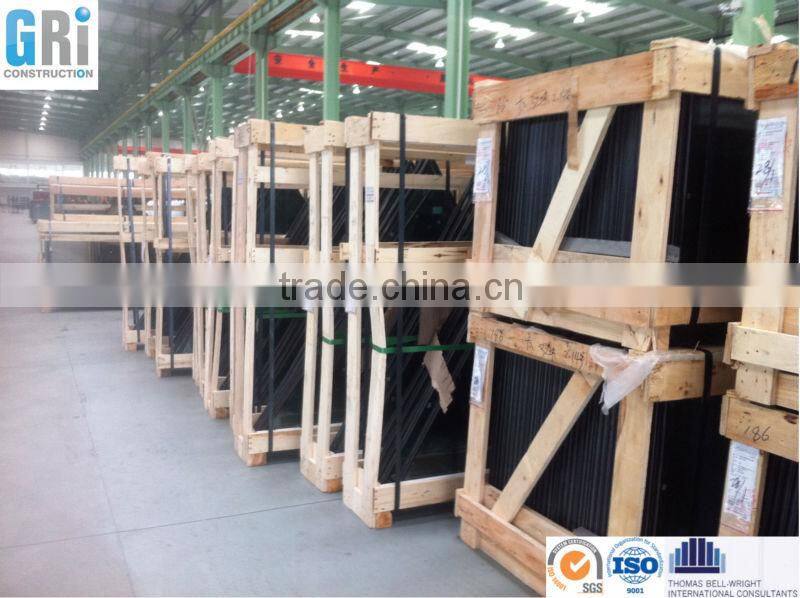

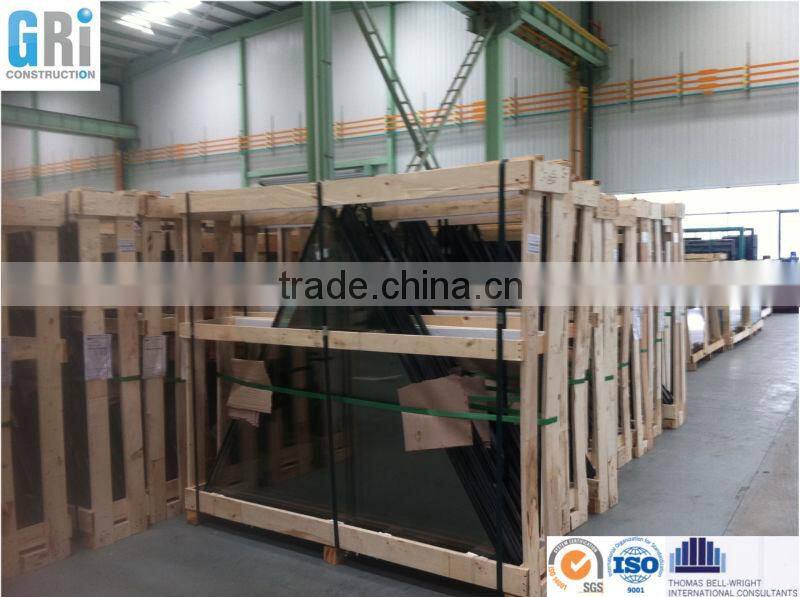

Trade term & load quantity:

Payment

TT, L/C

Lead Time

30-35 days vary by order quantity

20ft

200pcs for window with normal size(1.2mx1.2m)

90pcs for Doors with normal size(1.8mx2.2m)

40ft

420pcs for window with normal size(1.2mx1.2m)

200pcs for Doors with normal size(1.8mx2.2m)

40HQ

530pcs for window with normal size(1.2mx1.2m)

250pcs for Doors with normal size(1.8mx2.2m)
