Auto tool changer automatic 3d wood carving cnc router/cnc router wood carving machine for sale
- Any port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
auto tool changer cnc carving wooden door cutting machine /cheap price Machine Wood/CNC Router Auto Tool Changer
-
Multi head CNC Router Carving Machine for Arts and Crafts
-
Hot sale Auto Tool Changing Woodworking Machine/ATC wood cnc router /ATC woodworking machine with CE ISO
-
New woodworking machine/wood cnc router/woodworking engraving machine 1325
-
China gold manufactory / CNC Router machine/ATC woodworking machhine with Vacuum Adsorption
-
china manufacturer factory price 1325 atc woodworking cnc router machine price
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | VMADE | |
| Model Number | VML1530D/VML2030D/VML2040D | Voltage | AC380V/50Hz | |
| Power(W) | 9.0KW | Dimension(L*W*H) | 4000x2250x2250mm | |
| Weight | 1350KG | Certification | CE ISO | |
| Warranty | 2 Years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

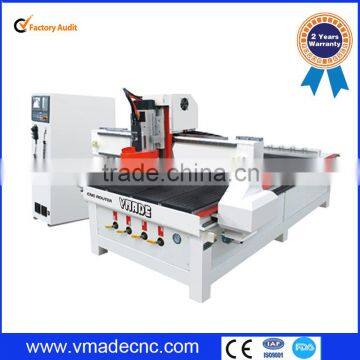

Automatic tool changing wood engraving CNC machine
Feature
1. Circle style automated tool changer with 8 pieces of tools in total.
2. 9KW HSD(optional) Italy made air cooling spindle, very stable and durable.
3. High torque Japan YASKAWA servo motor and driver, greater accuracy and stability.
4. Vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23
cube meters /hour.
5. Oil-injection system makes the maintenance more convenient.
6. Advanced syntec control system(optional)
Technical parameters
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300*2500*200 mm |
2 | Table Size | 1380*2880mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.04/300mm |
4 | X,Y,Z repositioning Positioning Accuracy | ±0.05mm |
5 | Frame Structure | Welded Structure |
6 | X-Y Structure | Gear Wheel Transmission, Shaft Linear Bearings |
7 | Z Structure | Screw Ball, Shaft Linear Bearings |
8 | Max. Speed | 0-32000mm/min |
9 | Max. Working Speed | 0-15000mm/min |
10 | Spindle | 9.0Kw HSD Spindle |
11 | Spindle Speed | 0-18000RPM |
12 | Drive Mode | Panasonic servo motor |
13 | Working Voltage | AC380V, 50/60Hz |
14 | Command Code | vertical machining center |
15 | Operating System | Syntec control system |
16 | Inverter | Delta |
17 | Flash Memory | 128M |
18 | Collet | ER25 |
19 | X-Y-Z Working accuracy | <0.01mm |
20 | Software | Type3, Ucancam, Artcam |
21 | Running circumstance | Temperature: 0°C~45°C,Relative humidity: 30%~75% |
22 | Packing Size | 4000x2150x2200 mm |
23 | Net Weight | 1100KG |
22 | Gross Weight | 1350KG |
Application
Woodworking application: sheet metal plane, three-dimensional wave plate processing, screen, process window processing, cabinet doors,soild wooden doors,
carves doors avoiding paint,cutting, hollow cutting, drilling and other processing.
Other industries: building model , wood-model , propeller , foam mold of car , violin , the erhu ,and other
musical instruments is 3D surface. Shape cutting , sculpture of surface patterns of musical instruments ,
calligraphy plaque , carving of frames.
Jinan VMADE CNC Machine Co.,Ltd was founded in 2007. For 8 years, Vmade laser has always been devoted in studying and manufacturing laser cutting, engraving and marking etc. With all VMADE staffs' persistence and hard worke, VMADE laser has developed to a large-scale international manufacturing company.
Our service:
1.One year warranty for the whole machine.
2.Teach video and detailed manual sent with the machine.
3.24 hours online support.
4.Professional technical support
5.Free design and guide for customer
6.Free software update
7.We can supply the new machine parts or fix the old one.
Welcome to Enjoy Us ~~We are a Big Family ~ What are you wait for ?
Telphone: 86-0531-88973625
Skype:
Whatapp /Mobile : + 86 18253136902
Address : No 677,Tianchen Road ,High -Tech Zone ,Jinan city , China .
Bank Account
Bank Name : Bank of China,Jinan Branch
Swift Code :BKCHCNBJ51B
Company Name :Jinan Vmade CNC Machine Co.,ltd
A/C No :23512278325
