Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | VMADE | |
| Model Number | MDw | Voltage | 220V | |
| Power(W) | 2.0KW | Dimension(L*W*H) | 3250x2050x1900mm | |
| Weight | 1780kgs | Certification | CE,ISO,FDA,SGS | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

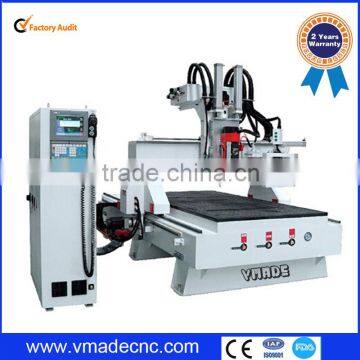

China gold manufactory high quality low price ATC CNC Router machine/woodworking machhine
Application
Mainly used for relief processing, wood door, cabinets, kitchen utensils, chairs,
decoration business, mould industry, wood panel, , wave board processing, MDF sheet carving,
screen, calligraphy tablet design , , wood furniture, computer tables, and so on.
Features
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped with T type gantry and thickening cast iron machine bed.
3. Equipped with 2 spindle heads, can processing several work pieces by one time,
saving time and improving the efficiency.
4. The Spindle heads distance is adjustable according to the work piece processing size.
5. It can also just open any one spindle head when working.
6. Can be controlled by computer, showing the processing path and estimated processing time.
7. Transverse T slot working table, better for the relief fixing.
8. Linear square guide rail, rack transmission, high speed, high precision and long life time
9. Function of re-carving after break point and power off, reducing the materials wasting.
10. Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate,
UcanCam,Artcut engraving software, Coredraw, etc.
Technical parameters
Items | Description | Optional items |
Effective working area | 2000(X)mm*3000(Y)mm* |
|
Max.thickness of the | ≤200mm(the distance between |
|
Materials | Square steel tube machine bed |
|
Guide rail | Linear square guide rail |
|
Transmission | Rack for X Y-axis ball screw |
|
Driving mode | Stepper motor /servo motor(option) |
|
Spindle head | 2 or more |
|
Spindle power | 3.0kw water cooling/ Italy HSD | Or higher or air cooling |
Spindle speed | 0-24000rpm/min |
|
Empty traveling speed | 0-60000mm/min |
|
Engraving speed | 0-25000mm/min |
|
Resetting accuracy | 0.05mm |
|
Control system | PCI NcStudio | Or DSP offline or |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
|
Compatible software | Artcam, Type 3, Ucancam,etc |
|
Packing size | 3950*2210*2050mm |
|
Gross weight | 1600kg |
|
Machine configuration
Material
steal materials such as copper, aluminum ,iron
man-made marble, sand, plastic board PVC materials, wood board
Advertising board,Label design,Acrylic cutting,model, of the multi material deco
optional items
Dust collector, helping to suck the dust, milling dust, keeping the machine clean
DSP offline control system, no need computer, more easier and convenient
Rotary axis, for the cylindrical materials processing.
Application
Mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs,
decoration business, mould industry, wood panel, , wave board processing, MDF sheet carving,
Sample
5-7 working days for shipment
wooden packaging for the machine
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in high-tech zone, Jinan City,
Shandong Province of China.
It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep delicate
and attentive attitude on every step and always keep to learn the most advanced technology and create more
humanized products to all our customers.
If you have any questions, Please contact us
Welcome to visit our factory
