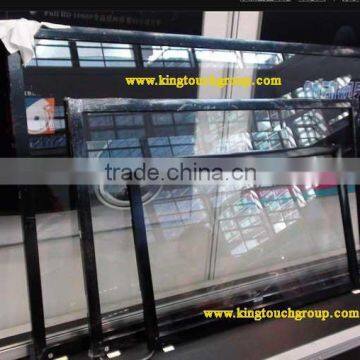

IR Mutli-touch Screen Frame
- Shenzhen
 - Credit Card PayPal

You May Like
Product Details
| Products Status | Stock | Screen Size | Other, 42 inch | |
| Type | Infrared | Interface Type | Serial, USB, Other, Serial, USB, RS232 | |
| Resolution | Other, 4096 * 4096 | Brand Name | KingTouch | |
| Model Number | KTT-IR42KMM | Place of Origin | Guangdong, China |
Product Description
Specifications
Multi Touch Screen1. True Multi touch
2. Fast response and touch stability;
3. Supports Windows 7 and TUIO Protocol;
KingTouch Technology Group Limited (Who including Xiamen KingTouch Technology Co., Ltd) founded in 2003 and located in Shenzhen, China is a touch technology-leading Group company which focus on developing, manufacturing touch products and touch solutions of human machine user interface, Such as: infrared(IR) Single-touch, Dual-touch and Multi touch Overlay, 4 Wire and 5 Wire Resistive touch screen,Surface Acoustic Wave (SAW) touch screen, Interactive touch foil film through glass, Projected and Surface Capacitive touch screen, Optical touch screen, Touch LCD Monitor, Touch Kiosk, and Multi-touch LCD Monitor and Advertisement POS, Etc. So KingTouchGroup’s touch products had been widely used in Office Computor, Industrial equipment, Game Machine, Kiosk, POS, Automotive system, Medical equipments, Handheld GPS, Tablet PC, 4S Shop, Bus station, Metro, Digital signage AD, Hotels, Museums Library and Entertainment KTV, Etc.
IR Multi Touch Screen:
1. 4, 6, 10, 16 and 32 touch points simultaneously;
2. Available Sizes: 18.5", 19" 22'', 24'',27'',32'',40'',42'',46'',47'',50'',52'',55'',60'',65'', up to 120".
3. Fast response and touch stability;
4. Supports Windows 7 and TUIO Protocol;

IR Multi Touch Screen Major Features:
- True Multi touch)
 - IP65 Available
 - Support zoom in/out, display rotation
 - Withstands severe environments
 - Steble, No-drift, Calibration performence
 - Single USB to PCS, work perfectly with Laptops under battery mode
 - Cost effective

Applications:
- Large Size Information Kiosks
 - Gaming Machine, Lottery , POS, ATM and Museum Library,
 - Government projects and 4S Shop
 - Electronic catalogs
 - Computer-based traning
 - Eductioin and Hospital Healthcare
 - Digital Signage Advertisement
 - Industrial Control System
 - AV Equip & Rental business
 - Simulation Application
 - 3D Visualisation /360 Deg Walkthrough
 - Interactive touch table
 - Large Corporates

Specification:
Multi-touch Screen Size:  | |
General Size  | 18.5 inch to 120 inch  |
Fit in with  | Panel display device  |
Performance:  | |
Touch Mode  | Single-touch,Dual-touch, Multi-touch, drag, draw-line, rotate, zoom in/out  |
Resolution(Interpolation)  | 4096*4096  |
Linearity Error  | <1.5mm  |
Response Speed  | <15ms  |
Mechanical:  | |
Input Method  | Finger or gloved hand (rubber ,cloth or leather)  |
Touch Times  | Unlimited  |
Touch Activation Force  | No minimum touch activation force is required  |
Minimum Touch Object  | 2.5 mm X 2.5 mm  |
Vandal-proof  | No break by 1-pound steel ball dropping from 130 cm high  |
Surface Durability  | Surface durability is that of glass, Mohs' hardness rating of 7  |
Optical:  | |
Glass:  | Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional  |
Light Transmission  | 92%  |
Gloss  | Antiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units  |
Environmental:  | |
Temperature  | Operating Range: -20°C ~ 70°C;  |
Storage Range: -40°C ~ 85°C  | |
Relative Humidity  | Operating Range: 0%~90% RH (no dew falls)  |
Storage Range: 0% to 95% RH (no dew falls)  | |
Altitude  | Up to 3,000m  |
Ambient Light  | Direct sunlight 90°to ±30° to the display surface Touch detection operational  |
Direct sunlight all angles to display surface Free of false touch reports  | |
Electrical:  | |
Operation Voltage  | Typical +DC 5V, +4.75V to +5.25V  |
Power Supply  | Size under 52”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms  |
Size above 52”(52” not included): external AC-DC power adaptor  | |
Interface  | Full Duplex USB 2.0 (Full Speed) Plug and play compatible  |
Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity  | |
Current  | Typical 150MA@+5VDC; 350mA, maximum  |
Power  | <1.5W, operating current<300mA  |
Electrostatic Protection  | 15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)  |
Controller  | Integration inside touch panel  |
Agency Approvals  | CE, FCC, Rohs  |
Operating System:  | |
Operation System : Windows 7  | |
