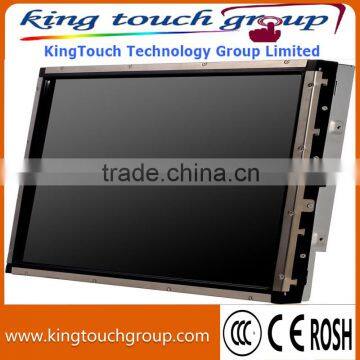

water proof and dust proof 18.5 Inch Open Frame Touch Screen Monitor, 18.5" open frame touch monitor Quality Choice

Model

KTT-TSM12.1

Series

Metal-cased openframe

Monitor Dimensions

Width: 298mm  Height:  237mm  Depth47mm

Weight(N.W/G.W)

4.3Kg /5.8 Kg (Approx.)

LCD Type

12.1"Active matrix TFT-LCD (Panel Model :G121SN01 V3)

Video Input

Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally

Recommend Resolution

800×600@75Hz

OSD controls

Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Power Supply

Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max

Mount Interface

1)VESA 75mm and 100mm

2)Mount bracket, horizontal or vertical

Regular Warranty

5 years for SAW Sensor; 3 years for controller; 1 year for LCD

Agency Approval

FCC,CE,RoHS

Active Area(mm)

246.0(H)×184.5(V)

Resolution

800×600@75Hz

Dot Pitch(mm)

0.3075×0.3075

Nominal Input Voltage VDD

+3.3V(Typ)

Viewing angle (v/h)

60°/70°

Contrast

600:1

Luminance(cd/m2)

400

Response Time(Rising/Falling)

10s/20s

Support Color

16.2M/262K colors

Backlight MTBF(hr)

50000

NOTE:The LCD Specification will change follow the relevant LCD panel brand and model

Type

Surface Acoustic Wave(SAW)

Resolution

4096*4096

Light Transmission

92%

Touch Life Cycle

50 millions

Touch Response time

16ms

Touch System Interface

RS-232 and USB interface

Power consumption

+5V@80mA

Output

12V/DC/4A

Input

100-240 VAC, 50-60 Hz

MTBF

50000 hr at 25°C

Operating Temp.

-10~50°C

Storage Temp.

-20~60°C

Operating RH:

20%~80%

Storage RH:

10%~90%
