Home > Products > Pulley/OTO Type/Dry Wire Drawing Machine > LW-1-6/560 L Series Dry Type Wire Drawing Machine

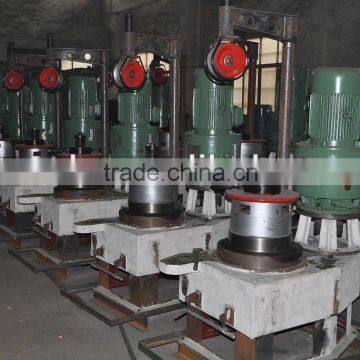

LW-1-6/560 L Series Dry Type Wire Drawing Machine
- 100 Set / Sets per Month
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | WDS | |
| Model Number | LW-560 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Place of Origin: Jiangsu, China (Mainland)Brand Name: WDS
Model Number: LW-1-6/560.
Specifications
Wire drawing Machine
Place of orignal:Wuxi,China
Brand name:Wds
Machine weight:2000kg/head
Structure:
The equipment consists of main reduction box,die casing,wheel frame,sash brace and
electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.
Usage:
The set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.The machine are applied for drawing wire in the factories,such as wire-steel factor,metal mesh factory and nail making factory etc.
In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block,the wortle is soaked in cooling water to reduce its working temperature.
The machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block.
| Type | LW-1-6/560 |
| Material intensity | δb≥110kg/mm2 |
| Max diam of material | 6.5mm |
| Min diam of material | 2mm |
| Diam of block | 1-6/560 |
| Max average condensation | 30% |
| Total condensation | 78-88.5% |
| Max.speed of block | 245m/min |
| Total power | 18.5-30kw |
| Weight |
The MOQ:1 set
The packing :plywood box
The quality guarantee:1 year
The available period:30 days
The price terms:FOB Shanghai
The valid period of offer:3 month
The delivery time :30 working days
The payment:T/T (30%prepaid ,70% paid before delivery)
