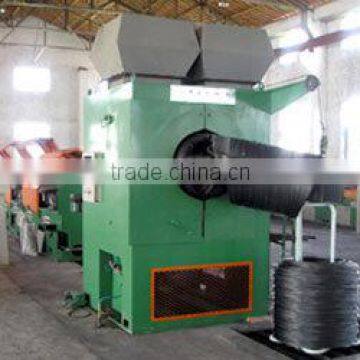

LW-1-6/350 L Series Dry Type Wire Drawing Machine
- 100 Set / Sets per Month
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | WDS | |
| Model Number | LW-350 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Place of Origin: Jiangsu, China (Mainland)Brand Name: WDS
Model Number: LW-1-7/450
Specifications
no pollution to the environment
drawing wire steady and uniform
nice shape and easy operation
Usage :The set of the machines is a ideal equipment for drawing wire stock of high,medium and carbon steel,as well as copper,alumium,and alloy.The machines are widely used for drawing wire in the factories such as wire-steel factory,metal mesh factory and nail making factory etc.
Structure:The equipment consists of main reduction box,die box,wheel frame,wire brace and electric control system.The spining drawing blocks are driven by JZT or Y series motor,with gear coupling runs changeful gears to reduce speed.The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.In order to lower residual heat on the surface of the block,the water cooler is installed in inwall of the block.The machine runs with crawl or linkage.The safety halt gear is installed by the position of operating block
| Model | Unit | LW-1-6/350 |
| Material intensity | mm | ≥140kg/mm² |
| Max diam of material | mm | 2.5mm |
| Min diam of material | mm | 0.75mm |
| Diam of block | mm | 1-6/350 |
| Max average condensation | % | 21% |
| Total condensation | % | 78% |
| Max speed of block | m/min | 200m/min |
| Total power | kw | 7.5-11kw |
| Weight | kg | 1000kg |
| Overal dimensions | mm | 1400*800*1500mm |
The MOQ:1 set
The packing :plywood box
The quality guarantee:1 year
The available period:30 days
The price terms:FOB Shanghai
The valid period of offer:3 month
The delivery time :30 working days
The payment:T/T (30%prepaid ,70% paid before delivery)
