Specifications

 About us

Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.

Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia,Uzbekistan.Iran Kenya, South Africa and so on.

Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.

Main products:

Pulley wire drawing machine

Straight line drawing machine

Water tank wire drawing machine

Aluminium wire drawing machines

Vertical wire drawing machine

Specifications

Wire Drawing machine
Vertical type
Max wire diameter:2.5mm
drawing wire of high, medium and carbon steel

wire drawing machine

Structure:

The equipment consists of main reduction box,die casing,wheel frame,sash brace and

electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.

Usage:

The set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.The machine are applied for drawing wire in the factories,such as wire-steel factor,metal mesh factory and nail making factory etc.

In order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block,the wortle is soaked in cooling water to reduce its working temperature.

The machine runs with carvel or linkage. The safety halt gear is installed by the position of operating block.

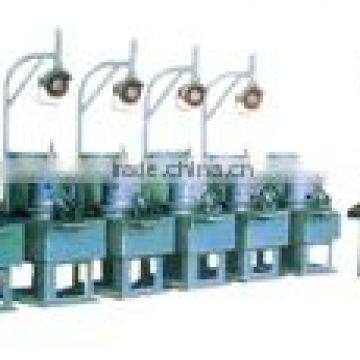

Model 350 Pulley Wire Drawing Machine
