Automatic eps Bllock Making Machine for Sale
- Tianjin
- T/T
You May Like
Product Details
| Condition | New | Product Type | Other | |
| Place of Origin | Hebei, China | Brand Name | TIANFANG | |
| Model Number | TF4000 | Voltage | 380V | |
| Power(W) | 7KW | Dimension(L*W*H) | 3600*2000*2750-9500*2150*2950 mm | |
| Weight | 2500kg | Certification | CE, Other, CE, ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Automatic eps Bllock Making Machine for Sale:
no packing for main machine, carton for small parts
Product Description

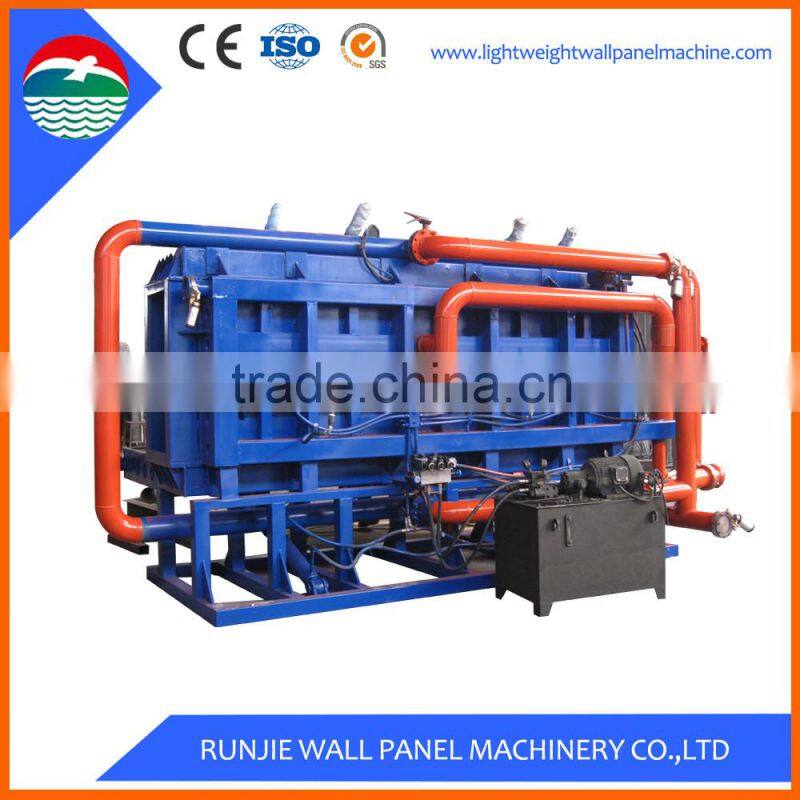

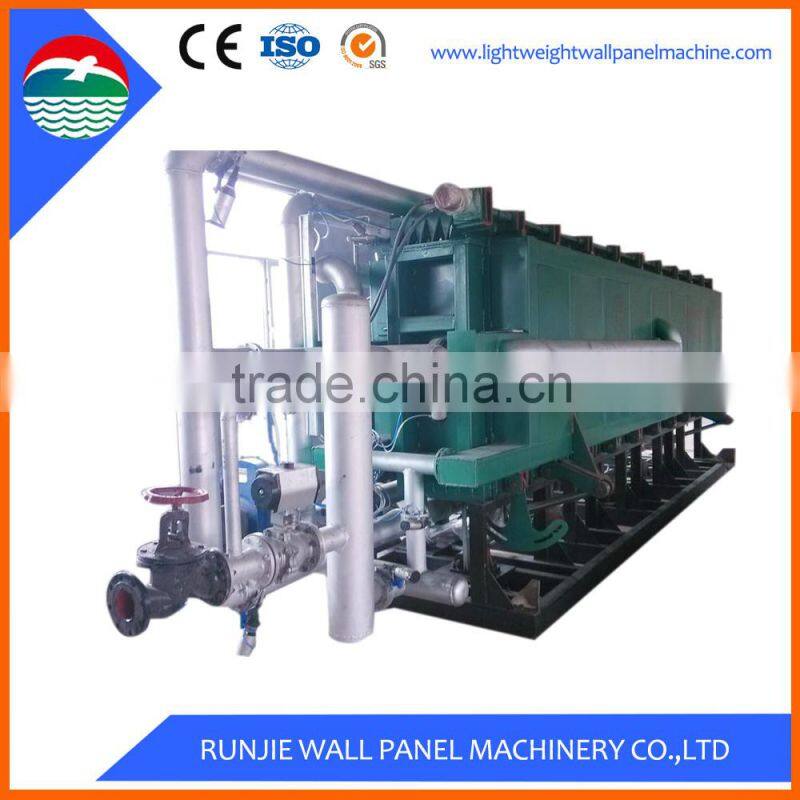

Automatic eps Bllock Making Machine for Sale
Mould size | 5080x1240x1030mm |
Block size | 5000x1200x1000mm |
Density range | 4.5-30kg/m3 |
Capacity | 10kg/m3: about 9 blocks/hour |
15kg/m3: about 7 blocks/hour | |
20kg/m3: about 5 blocks/hour | |
Steam pressure | 0.6-0.8mpa |
Steam consumption: | 10-15kg/m3 |
Steam inlet DN | 100mm |
Compressed air inlet DN | 40mm |
Compressed air consumption | 1.8-2.2m3/cycle |
Electricity | 380V |
Frenquency | 50HZ |
Power consumption | 25KW |
Overall weight | 12000KG |
Overall size | 66000mmx2150x2950mm |
♦ The machine is welded by high-quality profile steel with age heating treatment which can bring a high strength, non-deformation and high resistance to the expansive force from high-density products.
♦ The machine is controlled by LC full computer touch screen displayer which can realize a full automatic cycle operation of mould opening, mould closing, material feeding, heating, heat preserving, vacuum cooling, de-molding and extruding-out of finished products.
♦ The surface of the mould is made of special aluminum alloy panel which can realize a high efficiency of heat conduction, favorable tensile strength and long service life.
♦ The machine is integrated with overseas advanced and special penetrating and heating techniques for shaping, and a high pressure suction fan for material feeding, cooling with a strong penetrability, low consumption of steam, high speed of shaping and low water content so as to ensure the uniformity of inside and outside of the product.
Company Profile
Runjie Wall Panel Machinery Co., Ltd is a professional manufacturer of different kinds of lightweight wall panel machines-----eps concrete sandwich wall panel machine, hollow core wall panel machine, Mgo wall panel machine, artistic fence machine, ceramsite block machine, gypsum block machine, etc. Our advantage is that we not only make the machines, but also make the panels, so we have rich experience. When you visit our factory, you can watch not only the machine manufacturing but also the wall panel production. Our machines are top quality among similar companies and our machines have a lot of advantages over others. We warmly welcome buyers from around the world to visit our factory!
