Beautiful Design Automatic Eps Foam Block Cutting Machine
- Tianjin
- T/T
You May Like
-
Fully Automatic EPS Foam Block Cutting Machine
-
EPS Foam Concrete Block Cutting Machine
-
China Manufacturer EPS Foam Thermocol Block Cutting Machine
-
Hot Selling EPS Foam Thermocol Block Cutting Machine
-
China Supplier EPS Foam Block Cutting Machine
-
2016 Hot Selling Popular CNC Eps Foam Block Cutting Machine
Product Details
| Condition | New | Product Type | Other | |
| Place of Origin | Hebei, China | Brand Name | TIANFANG | |
| Model Number | PSQ-CNC400 | Voltage | 380V | |
| Power(W) | 3.0KW | Dimension(L*W*H) | 3000x1000x1500mm | |
| Weight | 1000kg | Certification | CE, Other, CE, ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Automatic Eps Foam Block Cutting Machine:
no packing for main machine, carton for small parts
Product Description
beautiful design Automatic Eps Foam Block Cutting Machine

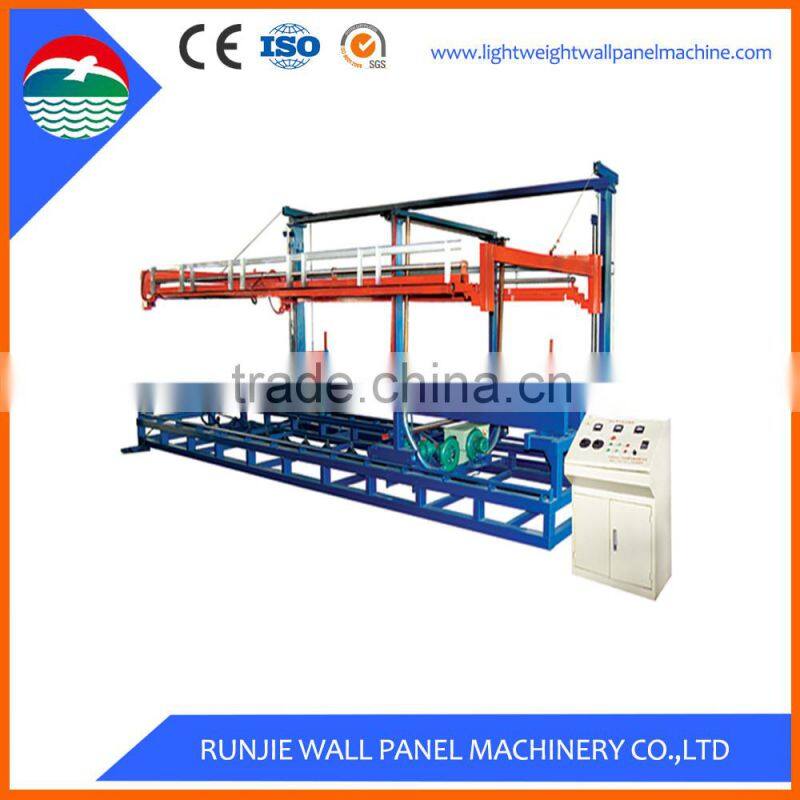

I. PSQ-6000 AUTOMATIC CUTTING MACHINE
Features:
♦ The machine is welded by high-quality rectangular steel tube with a reasonable and firm structure, high strength and no deformation.
♦ The machine is integrated with frequency control to realize a large range (0-4.5m/min) of step-less speed adjusting which is suitable for various cutting.
♦ The machine has horizontal, vertical and block cutting devices, and can realize a 3-direction stable cutting in adjustable and precise cutting size.

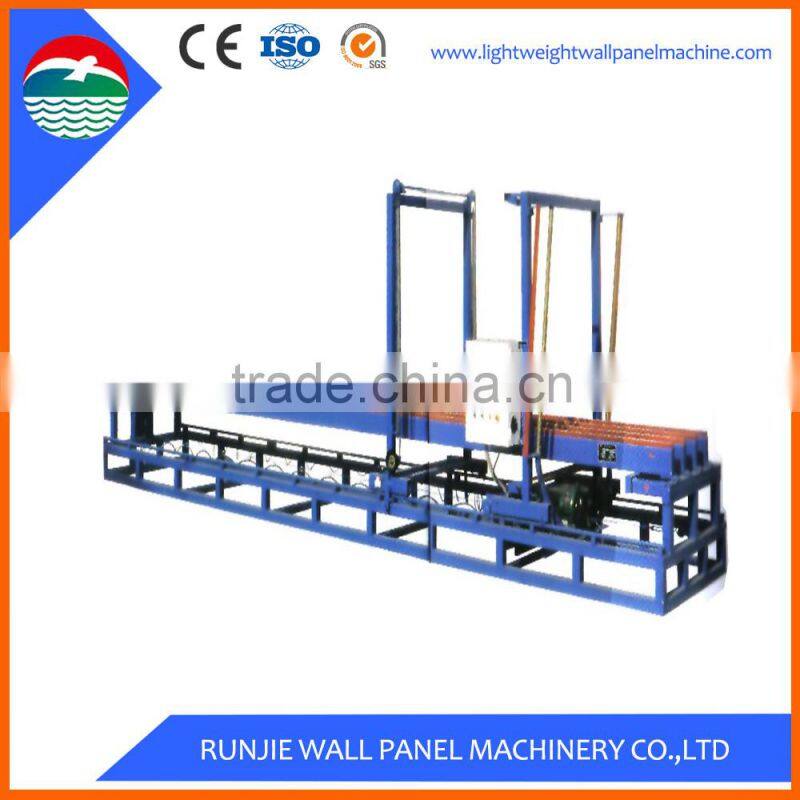

II. PSQ-4000 AUTOMATIC MULTI-FUNCTION CUTTING MACHINE
Features:
It can achieve three-dimension cutting----horizontal, vertical and cross cutting | |
Max 30 cutting wires can be manually set in horizontal direction | |
Max 15 cutting wires can be set in vertical direction | |
Minimum thickness to be cut | 10mm |
Suit for cutting Block size: | 4000x1300x1300mm(Suit for different density block) |
Cutting speed: | 0~2m/min |
Capacity : | denisity15g/l |
block size | 4000x1200x1000mm |
One Block cutting time
| 6~8min (2 labors) |
15min. (1 labor) | |
Connect load: | 22.3kw |
Note:
1. with automatic down cutting system
2. with block aligning device, keep block in straight position.

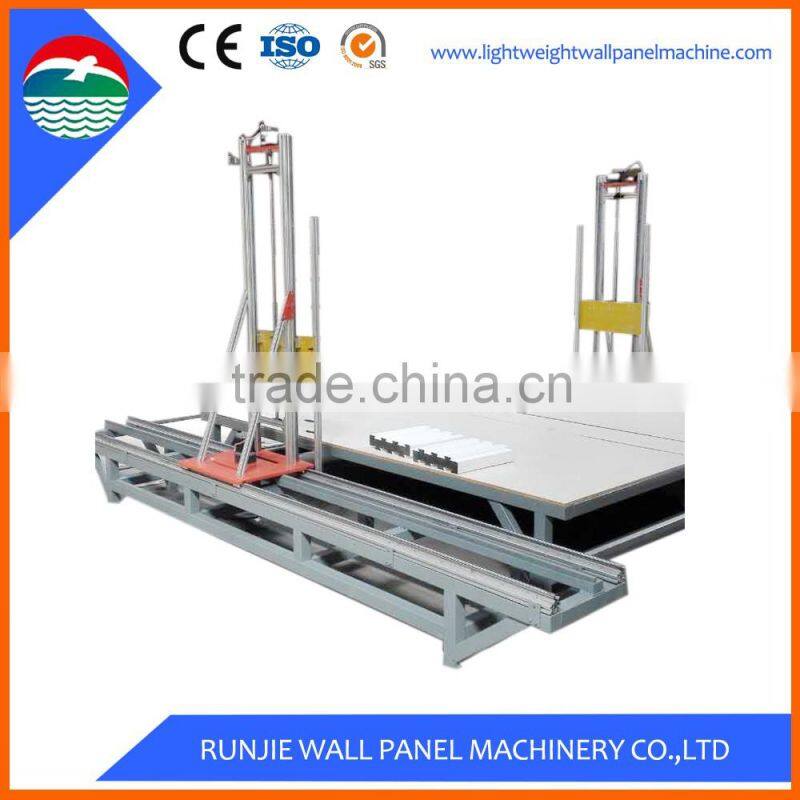

III. PSQ-4000 2D CNC CUTTING MACHINE
Features:
This machine can cut EPS products into different shapes. |
It is connected with a laptop or a touch screen. The user can directly use Auto-cad to make the drawing. |
20 wires can be put onto the machine. It can cut 20 same products at the same time. (for small products) |
Stable performance and precise cutting. |
Step-motor is used so the speed can be adjusted according to the user’s requirement. The tolerance of cutting can be 0.2-0.5mm. |
The frame of the cutting machine is made by aluminum alloy. It is lightweight but very strong. We can also make steel structure according to users' different requirements. |

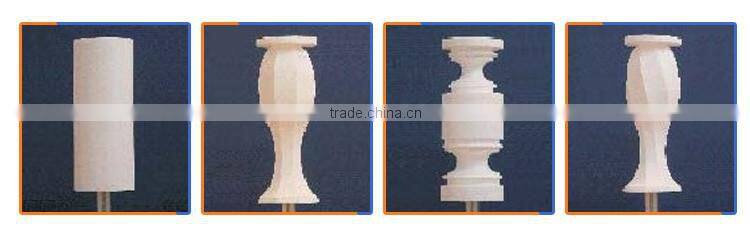

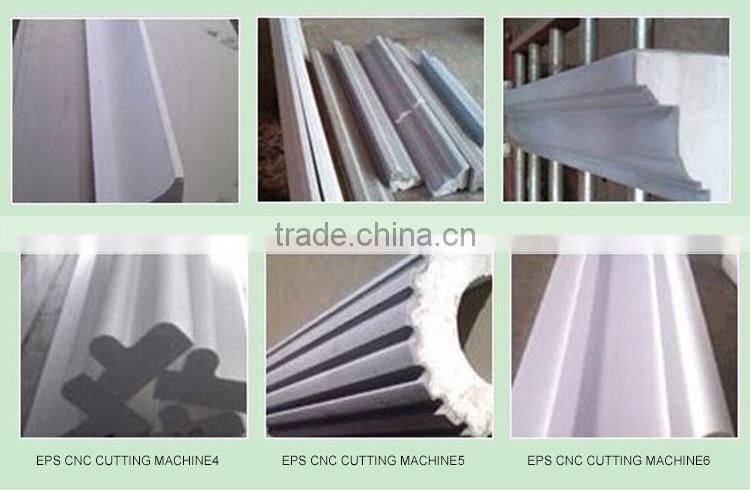

Products after Cutting:
♦ We assign technicians for the installation of the machine.
♦ We prepare enough quick-wear spare parts for the customer
♦We will help train technicians until the buyer can run the line by themselves.
♦We will also give our customers the best formulation to ensure make the best-quality panels at the lowest cost.
♦ If there is anything wrong with the machine because of the machine quality, our technician will go to repair it without any charge
Company Profile
Runjie Wall Panel Machinery Co., Ltd is a professional manufacturer of different kinds of lightweight wall panel machines-----eps concrete sandwich wall panel machine, hollow core wall panel machine, Mgo wall panel machine, artistic fence machine, ceramsite block machine, gypsum block machine, etc. Our advantage is that we not only make the machines, but also make the panels, so we have rich experience. When you visit our factory, you can watch not only the machine manufacturing but also the wall panel production. Our machines are top quality among similar companies and our machines have a lot of advantages over others. We warmly welcome buyers from around the world to visit our factory!
