Home > Products > Mechanical Shearing Machine > QH11D-2.5x1500 electric shearing machine

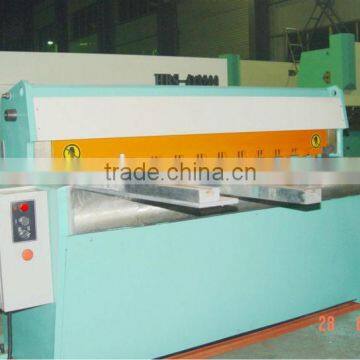

QH11D-2.5x1500 electric shearing machine
- Shanghai China
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | LIWANG | Model Number | QH11D-2.5X1500 | |
| Rated Power | 5.5kw | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Main parameters
Model | Shearing thickness (mm) | Shearing width (mm) | Number of strokes | Backgauge range | Shearing angle (º) | Working table height (mm) | Main power (kw) |
QH11D-2.5X1250 | 0.7-2.5 | 1250 | 47 | 0-650 | 1.5 | 800 | 5.5 |
QH11D-2.5X1300 | 0.7-2.5 | 1300 | 47 | 0-650 | 1.5 | 800 | 5.5 |
QH11D-2.5X1500 | 0.7-2.5 | 1500 | 47 | 0-650 | 1.5 | 800 | 5.5 |
QH11D-2.5X1600 | 0.7-2.5 | 1600 | 47 | 0-650 | 1.5 | 800 | 5.5 |
QH11D-2.5X1800 | 0.7-2.5 | 1800 | 47 | 0-650 | 1.5 | 800 | 5.5 |
QH11D-2.5X2000 | 0.7-2.5 | 2000 | 47 | 0-650 | 1.5 | 800 | 7.5 |
QH11D-2.5X2500 | 0.7-2.5 | 2500 | 47 | 0-650 | 1.5 | 800 | 7.5 |
QH11D-2.5X3050 | 0.7-2.5 | 3050 | 47 | 0-650 | 1.5 | 800 | 7.5 |
Character
--Steel-welded structure , vibration to eliminate stress, with compact construction, light weight and good rigidity.
--The moving orbit of the blade beams inclines forwards to the supporting surface of the bottom blade, so you can gain fine shear surface. Jacking screws of the top blade provide a fine adjustment to minimize “rag” or “burring” on the edge of the sheared material.
--The top blade moves through slide guide as fulcrum, it accomplish cutting function through up and down reciprocating driven by eccentric wheel.
--The main electric elements are world famous brands of Siemens, the characteristics are steady and reliable.
--The hold-down assembly adopts the butterfly springs and there are antiskid blocks in the hold-down device, thus pressure is bigger but it won’t damage the surface of sheet material.
--The machine is driven by an independent, totally enclosed gearbox mounted directly on the main shaft . Its construction is compact and the gear is well lubricated with low noise and long life.
Scale on backgauge
accessory case
