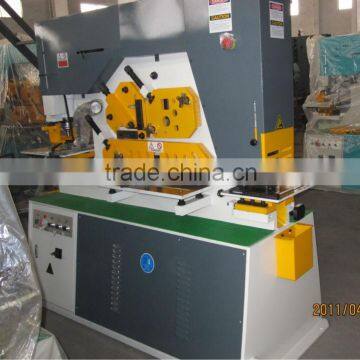

hydraulic machine to cut and bend iron Q35Y-16,20,25,30

Specifications

 Main technical parameters

Main function and advantages

1.Punching

Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel punching.

Large viewing window on stripper swing away design for ease of operation.large two piece gauging table with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.

2.Shearing

Round and square bar shear has multiple holes for a variety of sizes.Adjustable hold down device for round/square bar,channel/beam cutting.Large strong guarding for max safety.

The angle shear has the ability to cut angle at 45°both top and bottom leg.This gives the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity.

Easily adjustable hold-down device for accurate plate cutting.Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.

3.Notching

Unique design allows for cutting of angle and flat bar.Electrical interlock safety guard and three gauging stops for precise positioning.

4.Bending

Can also bend the plate below 500mm.
