New Condition 63 ton press brake machine
- shanghai port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | LIWANG | Model Number | WC67Y-100/3200 | |
| Machine Type | Press Brake | Raw Material | Sheet / Plate Rolling | |
| Material / Metal Processed | Stainless Steel | Power | Hydraulic | |
| Automation | Automatic | Extra Services | End Forming | |
| Certification | ISO 9001:2000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

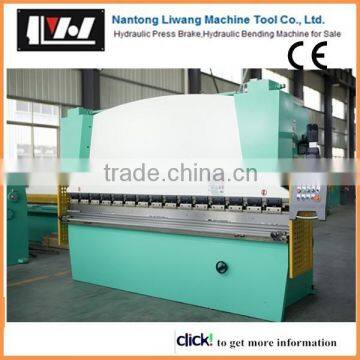

63 ton press brake machine
1.Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity. |
2.Hydraulic top-drive, steadiness and reliability. |
3.Mechanical stop, steel torsion bar to maintain synchronization, high precision. |
4.Motorized-adjusting device of back gauge and rams stroke |
5.Deflection compensation unit installed on the top die. |
6.Travel limit protection. Full machine guarding with safety interlock. |
Technical data:
Tel us the thickness and the width, we can recommend you the suitable, contact me
Hydraulic press brake wc67 series | ||||||||
Specification | Pressure KN | Worktable length mm | Distance between uprights mm | Throat Depth mm | Stroke mm | Opening height mm | Main motor KW | Weight |
WC67Y-40/2000 | 400 | 2500 | 1550 | 250 | 120 | 325 | 4 | 2600 |
WC67Y-40/2500 | 400 | 2500 | 2050 | 250 | 120 | 325 | 4 | 3000 |
WC67Y-63/2500 | 630 | 2500 | 2050 | 250 | 120 | 330 | 5.5 | 4200 |
WC67Y-63/3200 | 630 | 3200 | 2600 | 250 | 120 | 330 | 5.5 | 5100 |
WC67Y-80/2500 | 800 | 2500 | 2050 | 320 | 120 | 370 | 7.5 | 5800 |
WC67Y-80/3200 | 800 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 6100 |
WC67Y-100/2500 | 1000 | 2500 | 2050 | 320 | 120 | 380 | 7.5 | 6000 |
WC67Y-100/3200 | 1000 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 6600 |
WC67Y-100/4000 | 1000 | 4000 | 3200 | 320 | 120 | 380 | 7.5 | 8100 |
WC67Y-125/3200 | 1250 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 7000 |
remarks: ESTUN E10,E21,E200,DELEM DA41,DA52s,DA65 control system is optional
usage
Upper and lower Tool
Standard and optional equipment
Product categories
About the hydraulic bending machine, in Our factory, there are main three type:
1)WC67Y series NC bending machine( two axes control)
ESTUN E21, or E10 control system
2)WC67K series economic bending machine ( two axes control)
E200,DA41,E210 control system optional, servo motor, linear guideway, ball screw
3.WE67K series CNC bending machine( 3+1 axes, 4+1 axes 6+1 axes control)
DA52,DA56,DA65WE optional, electric-hydraulic valves,hydraulic compensation
CE certificate
