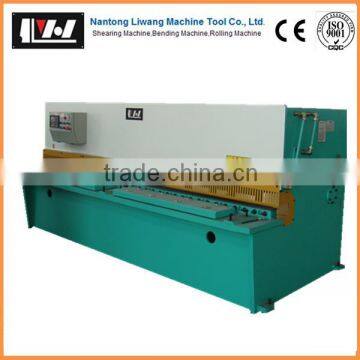

low maintenanc hydraulic steel metal plate cutting machine

Specifications

low maintenance  hydraulic steel metal plate cutting machine

company information

Certification

The Produce Scene

Main Applications, Functions and Features

1. This machine is used for straight sheet material whose tensile strength shall be less than 450N/mm²

2. The machine is equipped with front and back gauge. The whole frame is steel welded , vibrating treatment to remove the internal stress , good rigidity and stability .

3. Adopt interacted hydraulic transmission system.

4. Tandem cylinder ensure the consult of shearing angle when the machine is working.

5. Triple support lead rail to eliminate the gaps , it enhance the shearing quality.

6. The accumulator’s return is stable and fast.

7. Blades clearance adjusted by hand wheel , it’s quick, accurate and convenient.

8. Adjusting shearing angle to reduce the deformation of the sheet .

9. Upper blade holder with inward struture, it’s facilitate to feed the material.

10. Rolling ball device reduce the frictional resistance , at the same time , it can protect the workpiece surface from scratching.

Technical data:

Tell us the thickness and the width, we can recommend you the suitable, contact me

Application

Back gauge

 Front support

Blade gap adjustment

right view

 back view

 Pneumatic back support optional

other optional equipments

(1)Spare parts:common tool with wear parts

(2)Shippment:Nominal package:20GP

(3)Delivery time:15-30days

(4)Payment terms:TT,30% in advance, the balance before shipment

(5)CE certificate

Thank you for your choose, if you do not know which type is suitable type, tell us the thickness,

the width, the material, we will recommend you the suitable type, just contact us!
