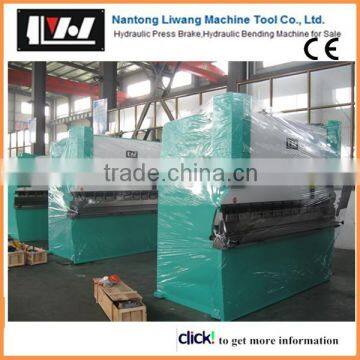

WC67Y-160/3200 press brake tooling

FOB Price

US$ 5,000 - 20,000 / Set

1 Set(Min. Order)

Port Shanghai China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	LIWANG	Model Number	WC67Y-160/3200
Machine Type	Press Brake	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Carbon Steel	Power	Hydraulic
Automation	Automatic	Extra Services	End Forming
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

press brake tooling

Product Description

Main structure

This machine is composed by frame, ram, worktable, two cylinder

digital display system and electric system;

Equipped with upper wedge manual crowning mechanism;

For easy feeding the workpiece, we provide front support with the machine;

The left-right balance of this machine while working is accomplished by torsion bar;

Safe fence and power break protection device are designed for the machine.

Hydraulic system

it use JAPAN NOK seals;

Oil lever indication is clear and directly;

Excessive load overflow valve machanism, safe and reliable;

American OMG valves from China, running steadily and reliably;

Shanghai Chengjie pumps

Electric system

Main electrical elements adopt Siemens

Buttons are Schneider

Siemens motor

Portable foot switch

It uses E10 or E21 digital display system which is special for press brake

other CNC control system is optional

NO.	Item	Valve	Unit	Remarks
1	Nominal pressure	1600	KN
2	width	3200	mm
3	Distance between uprights	2600	mm
4	stokes	180	mm
5	Open height	450	mm
6	Throat depth	320	mm
7	Length of working table	3200	mm
8	Running speed	100	mm/s
9	Working speed	8	mm/s
10	Returning speed	80	mm/s
11	Main power	11	KW
12	Length	3350	mm
13	Width	1590	mm	Not include front support
14	Height	2560	mm
15	Axes	2		X,Y

other types

1.safe guide

2.One set standard tool( Multi V wide worktable)

3.Front holding support

4.Economic clamping block device simple to use

5.Robust frame work

6.Standard ESTUN E21 control system( two shaft control)

Y shaft for stroke control shaft, used to control the bending angle

X control bending machine flanging size

1.Clear visual oil level height and temperature display.

2.Hydraulic system:

a.Hydraulic system may realize quick decline, slow decline, working speed bending,quick return

travel and sudden slider in the process of up and down etc

b.Gear pump with high pressure and low noise

c.Sealing rings from NOK, with good sealing performance, reliable working and long life

d.Optional Rexroth company or German Bosh

3.upper bend compensation mechanism

4.Back safe guide

5.Linear guide way, ball screw optional

Packaging & Shipping

CE certificate

FAQ

How to get a accurate quotation from us ?

1,tell us metal thickness.

2,tell us metal widthness.

How to repair&maintain our machine ?

Generally,the hydraulic machine is not easy to break.even though the problem occur,it is small problem.

we can solve it through email and video.

what policy for broken parts?

within one year,we offer free parts.

if beyond one year,you need to buy by factory cost.
