2015used aluminium wire drawing machine for bending wire machines and Aluminum wire making machines

Specifications

 Alloy rod breakdown machine
Inlet 9.5mm
Outlet 1.7mm-4.0mm

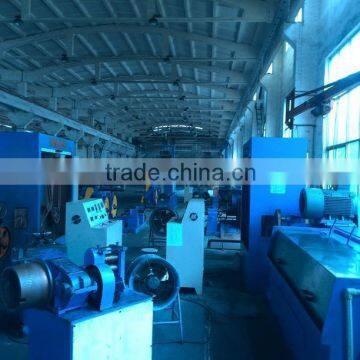

WDS-13DLA Aluminum rod breakdown machine

I. Application
WDS-13DL Aluminum rod breakdown machine is used to draw Aluminum wire from 9.5mm to 1.7mm –4.0mm. The drawing capstans are arranged in a line that are able to work continuously with drawing speed and speed of mechanical parts and electrical control can be matched with each other. It is easy to operate, easy to change dies quickly. This machine has features of easy and convenient operation, high efficiency and good quality of product.

II. Compositions of equipments

III.Specification of the equipment

1.Pay-off shelf

1-1.Guide roller type which is attached ground root.
1-2. This unit is composed of a stand and a guide roller.
1-3. It is adopted advanced structure which has a single pole with a rotation arm.
1-4. This pay-off stand can load 2-3 Al or alloy coilers at the same time to achieve to pay off wires continuously.

1-5. Height of pay-off shelf  5000mm

1-6. The maximum diameter of inlet coiler 2000mm

1-7. Guide wheel diameter 590mm

1-8. Quantity of guider 3 pcs

1-9. Straightening function for the inlet rod

2.WDS-13DL Main drawing machine

2-1.Gearbox is casted by HT200 cast iron accurately as a whole piece. Compared with piece together structure . It has many excellent features, for instance higher rigidity, well sealing performance.Also it will not leak water and oil and can reduce vibration efficiently.The gearbox is treated with one-off orientational processing to make sure processing accuracy.
2-2.In the gear box, material of bevel gears is 20CrMnTi and it is treated with cemented quenching.
2-3.The surface of drawing capstan is in a double-cone shape to enhance its using life greatly.
2-4.The drawing box has double covers to seal. Covers are made of stainless steel. The outer cover has six parts and inner cover has four parts and can be open and closed by hand.
2-5.The main bearings is NSK and the final drawing capstan is fitted with an independent DC motor with power of 75KW and is transmitted by teeth belt.

3.WDS-180 Tension controller

4.WDS-SD500-630 Automatic dual take-up spools

5.Electrical cabinet

The electrical control system for WDS-13DL Aluminum rod breakdown machine includes power supply cabinet, transmission cabinet for drawing or (containing the transmission for final capstan motor), transmission cabinet for dual-spool take-up, relay control cabinet, main operation desk etc.

6.Wire pointer machine

7.Operation panel

Including Length meter,Speed,Voltage,Ammeter,Button switch,Indicator light,Control switch,Alarm light.
