FRAME INSPECT AND MEASURING MACHINE

Specifications

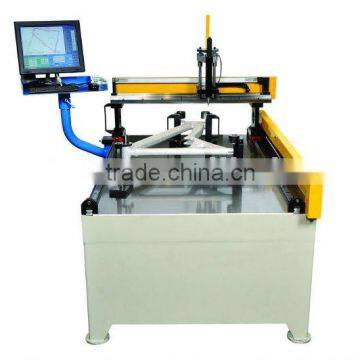

Bicycle Frame Inspect & Measuring Machine

1. Equipped PC controller.

2. Suitable for both diamond frame and suspension frame inspect.

3. It is available to display frame measuring line diagram after alignment.

4. Equipped printer for printing inspecting result and also available save data.

5. Available to display frame measuring line diagram after alignment.

6. Machine precision: ±0.10MM.

7. Measuring item:

    •The length from B.B. shell center to rear fork dropout center of complete cycle. (RC)

    • The length from B.B. shell center to front fork dropout center of complete cycle. (FC)

    • The length from front fork dropout center to rear fork dropout center of complete cycle. (WB)

    • The length from B.B. shell center to seat tube port center of complete cycle.

    • The length of head tube of complete cycle.

    • Measuring the dimension from B.B. shell center to WB of Y axle of complete cycle.

    • Measuring the dimension from head tube upper edge center to extension of seat tube parallels WB of complete cycle.

    • The angle between seat tube and WB of complete cycle.

    • The angle between extension of seat tube and WB & WB of complete cycle.

    • Available display X & Y axis coordinate of each frame fixed position and hole to hole dimension of suspension frame.

    • The length from B.B. shell center to front fork dropout center of suspension frame.

    • The length from B.B. shell center to seat tube port center of suspension frame.

    • The length of head tube of suspension frame

    • Measuring dimension from extension of seat tube upper edge center parallels WB  of suspension frame.

    • The angle between seat tube and WB of suspension frame.

    • The angle between extension of head tube and WB & WB of complete cycle.

8. Machine cycle time: 60SEC/PC.

9. Dimension:1750(L)x1700(W)x1400(H) M/M

10. Weight: 800KGS

11. Change- Over Time: 5 Minutes
