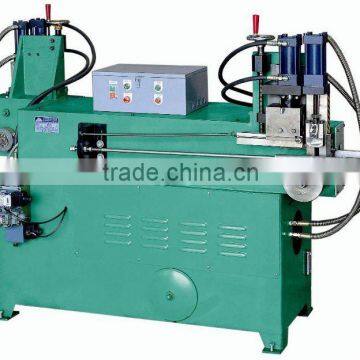

Front Fork Shoulder Bending Machine
Negotiable
/ Unit
1 Unit(Min. Order)
- Taichung
You May Like
Product Details
| Place of Origin | Taiwan, China | Brand Name | SHUZ TUNG | |
| Model Number | HT-40-100 | Machine Type | Beading Machine | |
| Raw Material | Pipe | Material / Metal Processed | Other, Mild steel, Aluminum, Copper, Stainless steel, Alloy | |
| Power | Hydraulic | Automation | Manual | |
| Certification | ISO 9001:2000 |
Product Description
Specifications
Bending MachineIt is suitable for bicycle producing line and applied for front fork shoulder bending process
Bending Machine
SPECIFICATION:
* TWO BENDING STATIONS, CONTROLLED BY 2X5HP HYDRAULIC MOTOR
* RANGE OF DIAMETER OF TUBE: 15.8-35M/M
* MAX. BENDING ANGLE:180 DEGREE
* RANGE OF BENDING RADIUS: 60-180M/M
* THICKNESS: MAX. 2M/M
* M/C CYCLE TIME: DEPEND ON BENDING RADIUS AND TUBING SPEC.
* DIMENSION: 2000(L)x1120(W)x1700(H) M/M
* WEIGHT: 840 KGS
* CHANGE OVER TIME:10 MINUTES
