Seamless Steel Tube Used as Boiler Tube
- XINGANG PORT SHANGHAI PORT AND QINGDAO PORT CHINA
- T/T
You May Like
Product Details
| Thickness | 2, 14 | Section Shape | Round | |
| Outer Diameter | 10 - 114 mm | Place of Origin | Hunan, China | |
| Secondary Or Not | Non-secondary | Application | Boiler Pipe | |
| Technique | Hot Rolled | Certification | API | |
| Surface Treatment | Other, Galvanized, varnishing or balck paiting | Special Pipe | API Pipe | |
| Alloy Or Not | Non-alloy |
Product Description
seamless steel tube used as boiler tube
1)Product Name: Boiler Tube
2)Outer Diameter: 10 mm - 114.3 mm
3)Wall Thickness: 2 mm - 14 mm
4)Executive Standard: DIN17175, GB3807-2008, GB5310-2008
5)Steel Grade: St35.8, St45.8, 13CrMo44, 13CrMo910, 13Mo3
6)Application: It is used for the pipeline of boiler industry.
7)Detailed Description: Prompt delivery,good package,low price and perfect quality.
8)Packing:Hexangular packing in bundles
9)Export: Europe, North America, the Middle East, Africa, Asia and other countries and regions, well received by consumers!
Welcome to your inquiry about our products.We assure that our products will satisfy your needs with competitive performance price ratio and best services.
B3087: Seamless steel tubes for low and medium pressure boiler
Steel grade | Chemical composition, %by mass | |||||||
C | Si | Mn | P | S | Cr | Ni | Cu | |
not exceeding | ||||||||
10 | 0.07~0.13 | 0.17~0.37 | 0.35~0.65 | 0.035 | 0.035 | 0.15 | 0.30 | 0.25 |
20 | 0.17~0.23 | 0.17~0.37 | 0.35~0.65 | 0.035 | 0.035 | 0.25 | 0.30 | 0.25 |
Mechanical Porperties
Grade | Tensile Strength Rm/ MPa | ReL/MPa | Elogation A/ % | |
Wall thickness/mm | ||||
≤16 | >16 | |||
Max. | Max. | |||
10 | 335~475 | 205 | 195 | 24 |
20 | 410~550 | 245 | 235 | 20
|

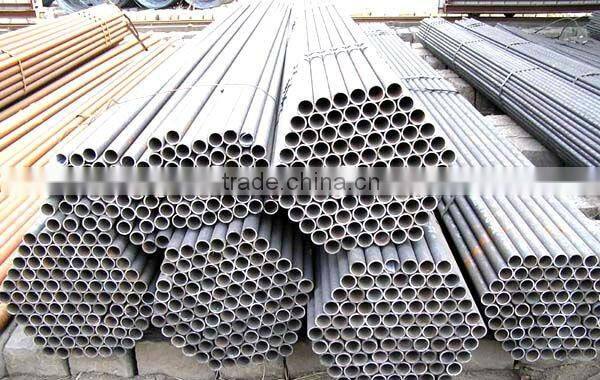

Products pics
Workshop pics
Packing way:
certificates & catalogue
contact ID:
Your trial order will be cherished, any query pls feel free to contact us via the above ID, we are at 24 hours service for you.
Yours Sincerely
Magi Wu
