LINKJOIN ATS-100M Iron Loss Measurement Core Loss Tester Iron Loss Tester Trade Assurance Supplier Quality Choice
- Shenzhen; Shanghai; Guangzhou
- Credit Card PayPal
You May Like
-
LINKJOIN ATS-100M Core Loss Tester Electric Motor Electrical Motor Iron Loss Tester Trade Assurance Supplier
-
LINKJOIN ATS-100M Motor Core Loss Tester Iron Loss Tester DC Motor Trade Assurance Supplier
-
LINKJOIN ATS-100M Motor Electric Core Loss Tester Iron Loss Tester Manufacture Trade Assurance Supplier
-
LINKJOIN ATS-100M Motor Magnetic Transformer Electric Core Loss Tester Iron Loss Tester Trade Assurance Supplier
-
LINKJOIN ATS-100Mcore Loss Tester Power Transformer Iron Loss Tester Manufacture Trade Assurance Supplier
-
LINKJOIN ATS-100Mcore Loss Tester Electrical Transformer Iron Loss Tester Trade Assurance Supplier
Product Details
| Place of Origin | Hunan, China | Brand Name | LINKJOIN | |
| Model Number | ATS-100M |
Product Description
LINKJOIN ATS-100M iron loss measurement core loss tester iron loss tester trade assurance supplier
1. Brief Introduction
ATS-100M enables clients to do Rapid Quality Test of silicon steel sheets during raw-material purchase or on production-line. It also applies to test pressed silicon steel sheets and show silicon steel sheet grade directly by the iron loss value.
ATS-100M adopts singlechip technique together with A/D & D/A, sine-wave excitation power source embedded, directly display iron loss Ps(W/KG).

2. Main Features
Ø Applies to all kinds of oriented or non-oriented cold-rolled steel sheets and hot-rolled sheets.
Ø Sine-wave enables it remove the bad effect of the harmonic wave.
Ø Test results DON`T include copper loss.
Ø Probe add air-gap flux compensation coils, test results is more accurate.
Ø 3 Bm test spots customized, device power-off will not loss data memory.
Ø Easy to do material comparison.

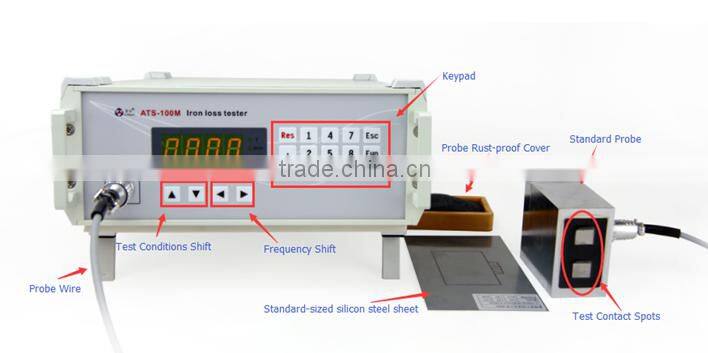

3. Illustration
4. Technical Data
Power source | AC 220V±10% 50Hz,1A |
Display | 4digits LED display,5 statement alarms |
Frequency | 50Hz, 60Hz |
Flux setting range | Bm1:0.5~1.0T Bm2:1.0~1.5T Bm3:1.5~1.9T |
Thickness range | 0.10~0.50mm |
Silicon steel size | ≥ 40mm×40mm,flat surface |
Repeatability | ±1% |
Accuracy | 5% |
Refresh rate | 6 times/second |
Case dimension | Metal case:235×90×330mm(W×L×H) |
5. Configuration
S/N | Item | Model | Qty | Unit |
1 | Mainframe | ATS-100M | 1 | set |
2 | Standard probe |
| 1 | set |
3 | Probe wire |
| 2 | set |
4 | Standard-sized silicon steel sheet |
| 1 | piece |
5 | Power wire |
| 1 | set |
6 | Probe rust-proof cover |
| 1 | set |
7 | User`s Manual |
| 1 | set |
8 | Warranty Card |
| 1 | set |

HUNAN LINKJOIN TECHNOLOGY CO., LTD. warrants each instrument of its manufacture to be free from defects in material and workmanship. Our obligation under this warranty is limited to servicing or adjusting any instrument returned to our factory for that purpose. The warranty period is 18 months. On returning the equipment under warranty, the buyer bears the costs for the shipment to LINKJOIN; LINKJOIN bears the costs for returning the device to the buyer. However, the buyer bears all the costs for shipment, taxes and duties, if the device is returned to LINKJOIN from abroad.
The warranty period begins on the date of delivery of the product or later on the date of installation of the product if the product is installed by LINKJOIN, the warranty period begins on the 31st day after delivery, provided that if you schedule or delay the LINKJOIN installation for more than 30 days after delivery.
LINKJOIN warrants the product only if it has been sold by an authorized LINKJOIN employee, sales representative, dealer or LINKJOIN headquarter.
The warranty period does not apply to defects of product result from improper or inadequate maintenance, repair or calibration;unauthorized modification or misuse; improper site preparation or maintenance. Caution: the hall probe is easy to damage; it's not in the warranty scope list.
