Home > Products > Core Loss Tester > LINKJOIN ATS-100M core loss tester silicon steel sheet of transformer silicon electrical steel sheet trade assurance supplier
LINKJOIN ATS-100M core loss tester silicon steel sheet of transformer silicon electrical steel sheet trade assurance supplier
- Shenzhen; Shanghai; Guangzhou
- Credit Card PayPal
You May Like
-
LINKJOIN ATS-200M Iron Loss Tester / Core Loss Tester electric motor core loss tester electrical motor trade assurance supplier
-
LINKJOIN ATS-200M Iron Loss Tester / Core Loss Tester electric core loss tester motor tester trade assurance supplier
-
LINKJOIN ATS-200M Iron Loss Tester / Core Loss Tester electric Motor electric DC motor tester trade assurance supplier
-
LINKJOIN ATS-200M Iron Loss Tester / Core Loss Tester motor magnetic transformer tester manufacture Quality Choice
-
LINKJOIN ATS-200M Iron Loss Tester / Core Loss Tester power transformer electric transformer tester trade assurance supplier
-
LINKJOIN ATS-200M Iron Loss Tester / Core Loss Tester transformer manufacture tester trade assurance supplier
Product Details
Place of Origin | Hunan, China | Brand Name | LINKJOIN | |
Model Number | ATS-100M |
Product Description
LINKJOIN ATS-100M core loss tester silicon steel sheet of transformer silicon electrical steel sheet trade assurance supplier
1. Brief Introduction
ATS-100M enables clients to do Rapid Quality Test of silicon steel sheets during raw-material purchase or on production-line. It also applies to test pressed silicon steel sheets and show silicon steel sheet grade directly by the iron loss value.
ATS-100M adopts singlechip technique together with A/D & D/A, sine-wave excitation power source embedded, directly display iron loss Ps(W/KG).
2. Main Features
Ø Applies to all kinds of oriented or non-oriented cold-rolled steel sheets and hot-rolled sheets.
Ø Sine-wave enables it remove the bad effect of the harmonic wave.
Ø Test results DON`T include copper loss.
Ø Probe add air-gap flux compensation coils, test results is more accurate.
Ø 3 Bm test spots customized, device power-off will not loss data memory.
Ø Easy to do material comparison.

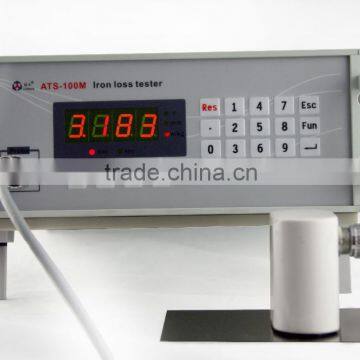

3. Illustration
4. Technical Data
Power source | AC 220V±10% 50Hz,1A |
Display | 4digits LED display,5 statement alarms |
Frequency | 50Hz, 60Hz |
Flux setting range | Bm1:0.5~1.0T Bm2:1.0~1.5T Bm3:1.5~1.9T |
Thickness range | 0.10~0.50mm |
Silicon steel size | ≥ 40mm×40mm,flat surface |
Repeatability | ±1% |
Accuracy | 5% |
Refresh rate | 6 times/second |
Case dimension | Metal case:235×90×330mm(W×L×H) |
5. Configuration
S/N | Item | Model | Qty | Unit |
1 | Mainframe | ATS-100M | 1 | set |
2 | Standard probe |
| 1 | set |
3 | Probe wire |
| 2 | set |
4 | Standard-sized silicon steel sheet |
| 1 | piece |
5 | Power wire |
| 1 | set |
6 | Probe rust-proof cover |
| 1 | set |
7 | User`s Manual |
| 1 | set |
8 | Warranty Card |
| 1 | set |
HUNAN LINKJOIN TECHNOLOGY CO., LTD. warrants each instrument of its manufacture to be free from defects in material and workmanship. Our obligation under this warranty is limited to servicing or adjusting any instrument returned to our factory for that purpose. The warranty period is 18 months. On returning the equipment under warranty, the buyer bears the costs for the shipment to LINKJOIN; LINKJOIN bears the costs for returning the device to the buyer. However, the buyer bears all the costs for shipment, taxes and duties, if the device is returned to LINKJOIN from abroad.
The warranty period begins on the date of delivery of the product or later on the date of installation of the product if the product is installed by LINKJOIN, the warranty period begins on the 31st day after delivery, provided that if you schedule or delay the LINKJOIN installation for more than 30 days after delivery.
LINKJOIN warrants the product only if it has been sold by an authorized LINKJOIN employee, sales representative, dealer or LINKJOIN headquarter.
The warranty period does not apply to defects of product result from improper or inadequate maintenance, repair or calibration;unauthorized modification or misuse; improper site preparation or maintenance. Caution: the hall probe is easy to damage; it's not in the warranty scope list.
1. 100% Manufacture
Both our factory and company are founded in Loudi, Hunan Province. We are specialized in manufacture and
sales of magnetic measurement instruments. All the products are made by our own factory. So our price is
competitive.
2. Quality control
From the material to the final product. All the components together with production procedure are inspected
and controlled. We ensure the products have been fully inspected by our QC one by one before shipment.
3. Reliable after sales service
Free training for the operation of equipment in our company, which is provided by our professional training
department.
We provide 18months warranty for the maintenance without charges for components change or repairing.
(except for fragile parts) . And we are responsible for lifelong repair, and charge appropriately for repair
service out of warranty period.
Q1: What are the terms of payments?
A1: We accept T/T, Western Union, Paypal, and cash.
Q2: How long it will take to delivery the goods?
A2: If we have the goods in stock, we will delivery them within3 working days after we get your payment. If we
do not have in stock, we will delivery them before the deadline which we both parties agreed on.
Q3: What kind of package you offer?
A3: We pack the goods by the export box,fill with foam to make sure the goods in good condition for storage
and shipment.
Q4: What kind of shipment ways are available?
A4: By sea to your nearest port.
By air to your nearest airport.
By express(DHL, UPS, FedEx, TNT, EMS) to your door.
If customers have their own express account number, transportation fee paid by such accounts are also
welcome.We will provide you a tracking No. after we ship the goods, so that you can track the goods
conveniently.
