Specifications

BeagleBone BB Black TI AM3358 Cortex-A8

[products]

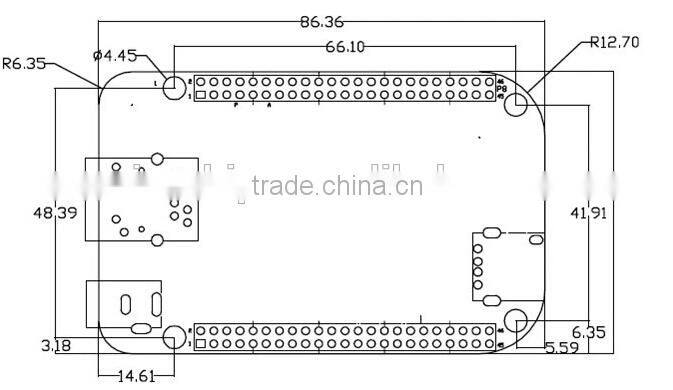

Product size: 86.36 mm × 54.61mm

Operating temperature: 0~70 °C

Humidity: 20% ~ 90% (no condensation)

Input power: 5V/0.35A

BB Black is a AM335x based development kit. The processor is integrated with the ARM Cortex-A8 kernel, and provides rich peripheral interfaces. The extended interface China version of BB-Black including network port, USBHost, USB OTG, TF card interface, serial port, JTAG interface (the default is not welded), HDMI D Type interface, eMMC, ADC, I2C, SPI, PWM and LCDscreen interface.

Application scenarios China version of BB-Black is very wide, to meet the different needs in various fields including gaming peripherals, household and industrial automation, consumer medical devices, printers, intelligent charging system, intelligent vending machine weighing system, education terminal and senior toy, the.

General purpose interface includes 4 sets of general input and outputinterface (GPIO), each group of GPIO module provides 32 general input and output interface dedicated pin, so that general GPIO can be as high as 128(4x32) pin. Programmable real-time unit and industrial communicationsubsystem (PRU-ICSS) consists of two 32 bit RISC kernel (programmable real-time unit, namely PRUs), memory, terminal controller and can support moreperipheral interface and protocol internal peripherals.

POWERVR ® SGX graphics accelerator subsystem for 3D graphics acceleration to support the show and the game effect, the following maincharacteristics of the subsystem:

The Tile-Based architecture, processing capacity of up to 20Mploy/ seconds

Universal and extensible rendering engine is a pixel and vertex shader functionmultithreaded engine

Advanced rendering commands more than Microsoft VS3.0, PS3.0 and OGL2.0 sets

Industry standard API, support Direct3D, OGL-ES 1.1 and Mobile 2, OpenVG 1 and OpenMax

[product parameters]

Product size: 86.36 mm * 54.61mm

Working temperature: 0~70 degrees

Humidity: 20% ~ 90% (condensation)

Input power: 5V/0.35A

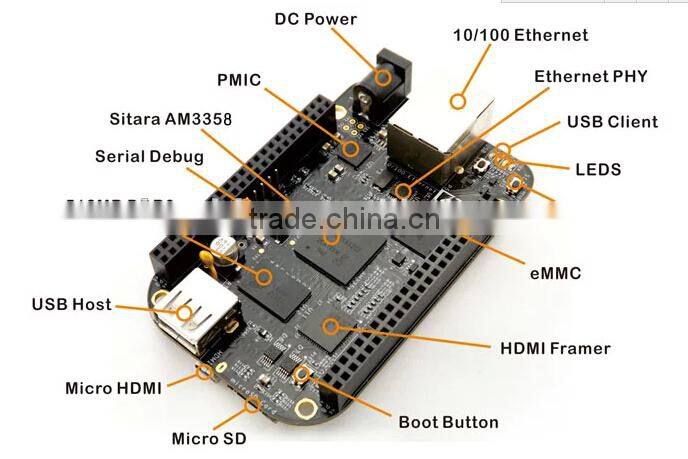

[board interface]

A startup options button

A power button

A reset button

A LED power indicator

Four user defined LED lamp

A HDMI D type interface (16 bit color output, support audio output)

A LCD interface (support 24 bit output, P8 extended interfaceleads)

A 10/100M Ethernet interface (RJ45 connector)

An integrated high speed USB PHY interface OTG 2 (Mini USB B type connector)

An integrated USB PHY 2 high speed HOST interface (USB type A connector)

A TF card interface (SD/MMC compatible)

A 3 wire serial debugging (6-pin 2.54 spacing connector)

A HDMI D type interface

Two expansion interface, can be extended to LCD, UART, eMMC,ADC, I2C, SPI and PWM interface

A JTAG interface (20-pin standard interface, the default is not welded connector)

Processor [AM335x]

Integrated 720-MHz ARM Cortex-A8 kernel

The integration of NEON SIMD co processor

Integrated SGX530 graphics engine

Integrated programmable real-time unit subsystem

Integrated 32KB instruction cache and 32KB cache data, supports parity

Integrated 256KB two level cache support error checking code

[onboard memory]

EMMC Flash memory:B version 2GB

The C version of 4GB (currently sold version)

512MB DDR3 SDRAM memory
