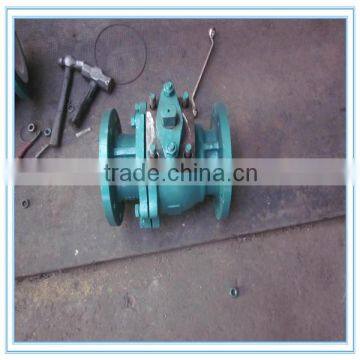

2 Pc Ball Valve Flanged End Direct Mounting

FOB Price

US$ 15 - 3,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

API6D carbon steel pneumatic ball Valve
1.Pressure:PN16-PN250
2.Size:1/2"~24"
3.Materia:CF8 CF3,CF3M,CF8M,WC9,WC6,C5,WCB

Flanged stainless steel pneumatic ball valve

>> Product features:

1) Fire protection antistatic design

2) Stem explosion proof device

3) Pressure balance holes designed on the ball valve

4) Double stem packing and counter pressure butterfly shrapnel device

>> Technical parameters:

Q41F ISO mounting pad ball valve

1. Specifications

basic information
size range	DN15~200mm (1/2"~8")
working pressure	150~600LB
suitable temperature	-10~150°C
Suitable medium	water, gas, oil
	CF8(304): suitable for nitric acid
	CF8M(316): suitable for acetic acid
Technical Standard
Design Standard	ASME B16.34, API 608
Fireproof test	API 607 4th 1993
Face to face standard	ASME B16.10
End flange Std	ASME B16.5
Test Standard	API 598, API6D
Material	WCB, A105, CF8(304), CF8M(316)
Operated way	Manual, Gearcase, Pneumatic, Electric
