SC PC optic fiber connector, high quality fiber connector manufacturer

FOB Price

USD $1 - $2 / Piece

1 Piece(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port shanghai sc pc optic fiber connector
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	OEM
Model Number	SC

Product Description

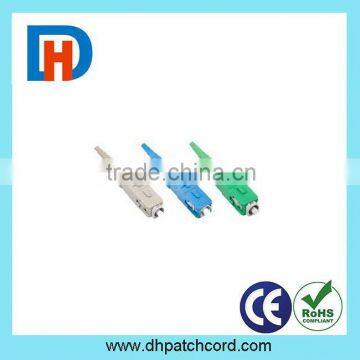

SC Fiber Optic Connector (fast connector), high quality fiber connector manufacturer

Specification:

Material: Zirconia (ZrO2) ferrule

Insertion loss: <0.2dB
Return loss: >65dB
Service life: >1000 times
Temperature range: -40° ~85°

Features:

1) Superior qualified standard polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);

3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);

4) φ0.9mm, φ2.0mm, φ3.0mm cable optional

5) Simplex and duplex connector available;

6) Good exchange ability and good durability;

7) Available in fiber bunch, ribbon fan-out, pigtail available;

8) Meets ISO9001, ROHS and Bell core GR 326-core standards;

9) Customized specifications are welcomed.

Application:

Telecommunication
CATV
LAN (including FITL, FTTH and FTTD)
Data network

Performance Index

Parameter	Unit	FC,LC,SC				ST,MU,SMA905			MTRJ,MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310,1510				1310,1510			1310,1510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	°C	-40~+75				-40~+75			-40~+75
Storage temperature	°C	-45~+85				-45~+85			-45~+85
Cable diameter	mm	Φ3.0,Φ2.0,Φ0.9				Φ3.0,Φ2.0,Φ0.9			Φ3.0,Φ2.0,Φ0.9

FAQ

Q1: What is your main products?

A; Our main products are fiber patch cord, fiber pigtail, fiber cable and its related products.

Q2: Are you a trading company or manufacture?

A: We are a factory.

Q3: How can i get some samples?

A: We are honored to offer you some FREE samples under $20.00 for testing, but buyer should bear the shipping costs.

Q4: Can you supple the OEM products under our brand ?

A: Yes, sure. We could supply OEM products with the package, but need MOQ to print your brand

Q5: Can we become your distributor or agency in our area?

A: Yes, it's possible to become our distributor or agency in your area after several orders in a period of time.
