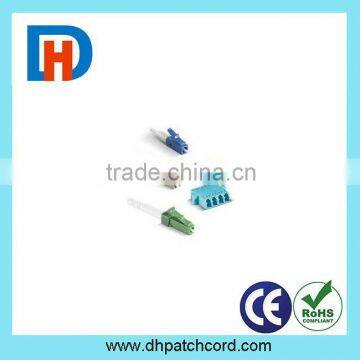

LC/PC Singlemode fiber Optic connector for patch cord
- 10000 Piece / Pieces per Month
- shanghai fiber optic lc pc connector
- T/T Credit Card PayPal
You May Like
-
LC Mini OM4 Fiber Optic Patch Cord with Violet color cable
-
LC Mini Fiber optic connector
-
LC /PC ceramic fiber optic ferrule,sleeve for fiber connector
-
High quality fiber connector manufacturer FC PC connector
-
High quality fiber connector FC Connector manufacturer
-
High quality Singlemode FC APC fiber optic connector
Product Details
| Place of Origin | Shanghai, China | Brand Name | OEM | |
| Model Number | LC/PC |
Product Description
LC/PC Singlemode fiber Optic connector for patch cord
Specification:
Material: Zirconia (ZrO2) ferrule
Insertion loss: <0.2dB
Return loss: >65dB
Service life: >1000 times
Temperature range: -40° ~85°
Features:
1) Superior qualified standard polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
4) φ0.9mm, φ2.0mm, φ3.0mm cable optional
5) Simplex and duplex connector available;
6) Good exchange ability and good durability;
7) Available in fiber bunch, ribbon fan-out, pigtail available;
8) Meets ISO9001, ROHS and Bell core GR 326-core standards;
9) Customized specifications are welcomed.
Application:
Telecommunication
CATV
LAN (including FITL, FTTH and FTTD)
Data network
Performance Index
Parameter | Unit | FC,LC,SC | ST,MU,SMA905 | MTRJ,MPO | |||||||
SM | MM | SM | MM | SM | MM | ||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | |||||||
Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
Operating temperature | °C | -40~+75 | -40~+75 | -40~+75 | |||||||
Storage temperature | °C | -45~+85 | -45~+85 | -45~+85 | |||||||
Cable diameter | mm | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 | |||||||
FAQ
Q1: What is your main products?
A; Our main products are fiber patch cord, fiber pigtail, fiber cable and its related products.
Q2: Are you a trading company or manufacture?
A: We are a factory.
Q3: How can i get some samples?
A: We are honored to offer you some FREE samples under $20.00 for testing, but buyer should bear the shipping costs.
Q4: Can you supple the OEM products under our brand ?
A: Yes, sure. We could supply OEM products with the package, but need MOQ to print your brand
Q5: Can we become your distributor or agency in our area?
A: Yes, it's possible to become our distributor or agency in your area after several orders in a period of time.
