Product Details
| Place of Origin | Shanghai, China | Brand Name | OEM | |
| Model Number | QAC-SCA |
Product Description

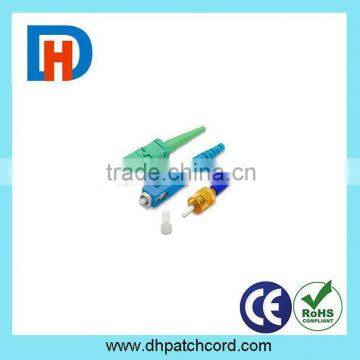

SC APC Fast Connector
Fast connector is used for field-installable optical fiber connector, screw design widely used in FTTH access optical network, include Singlemode and Multimode and suitable for 2*3.0mm drop cable.
Feature:
1. No special assembling tool
2. Easy for assembling
3. can repeat installation
4. Length: 58mm
Technical Datesheet:
ITEM | Technical Parameters |
Applicable for | Drop cable.Indoor cable(2.0/3.0mm) |
Optical fiber diameter | 125μm |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | About 100s(no fiber cut) |
Insert loss | <= 0.3dB |
Return loss | >=50dB |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
Using temperature | -40~+75°C |
On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
Drop-off test (drop-off height 4m, once per direction, totally 3 times) | IL ≤ 0.5dB RL ≤ 5dB |
