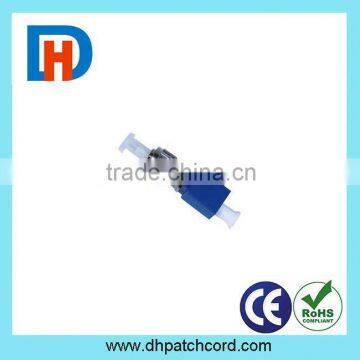

ST-LC Singlemode simplex hybrid male to female fiber optic adaptor
- Shanghai st-lc male to female fiber optic adaptor
- T/T Credit Card PayPal
You May Like
-
SC/ST/LC/FC SM/MM simplex or duplex hybrid fiber optic adapters
-
SC/ST/LC/FC/SMA/E2000/MTRJ/DIN SM/MM simplex or duplex fiber optic adapters
-
FC to SC Female to Female Singlemode Fiber Optic Adapter for Telecommunication
-
factory price FC/PC -FC/PC simplex Singlemode Fiber Optic Adapter for Telecommunication
-
LC/UPC Singlemode Duplex fiber adaptor for Telecommunication
-
FC/ PC Singlemode Fiber Optic Adapter Combination for Telecommunication
Product Details
| Place of Origin | Shanghai, China | Brand Name | OEM | |
| Model Number | ST-LC |
Product Description
ST-LC Singlemode simplex hybrid male to female fiber optic adaptor
Features :
Insertion loss: Less than 0.2dB
Return loss: 45dB/PC, 55dB/UPC, 65dB/APC
Retentivity:200-600g
Repeatability (1,000 times): Less than 0.2dB
High precision alignment
Compact design
Various housing materials and sleeve materials
Nickel plated brass body
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
Availability :
Housing: Square or D-type
Sleeve: Zirconia
Applications :
Telecommunication networks
Test equipment
Local area networks (LANs)
Data processing networks
CATV
Patch panel, optical fiber distribution frame
| Item | SM(UPC) | SM(APC) | MM(PC) |
| Insertion loss(dB) | ≤0.3 | ≤0.3 | ≤0.3 |
| Repetitiveness(dB) | ≤0.1 | ≤0.1 | ≤0.1 |
| Interchangeability(dB) | ≤ 0.2 | ||
| Plug time(times) | 500-1000 | ||
| Operating Temperature(°C) | -25~85 | ||
| Humidity | 95% | ||
| Sleeve Material | Zirconia | Zirconia | Phosphor |
| Bronze | |||
FAQ
Q1: What is your main products?
A; Our main products are fiber patch cord, fiber pigtail, fiber cable and its related products.
Q2: Are you a trading company or manufacture?
A: We are a factory.
Q3: How can i get some samples?
A: We are honored to offer you some FREE samples under $20.00 for testing, but buyer should bear the shipping costs.
Q4: Can you supple the OEM products under our brand ?
A: Yes, sure. We could supply OEM products with the package, but need MOQ to print your brand
Q5: Can we become your distributor or agency in our area?
A: Yes, it's possible to become our distributor or agency in your area after several orders in a period of time.
Factory Photos:
