HYY outdoor telephone cable wire 50 pairs

FOB Price

USD $0.07 - $0.12 / Meter

10000 Meters(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	szrunxiang
Model Number	RX-HYY Telephone Cable

munication cable
2.HDPE insulation
3.LDPE out jacket
4.Use in door
5.Delivery in time

HYY — Outdoor Telephone Cable UTP 25 Pairs 24AWG LDPE

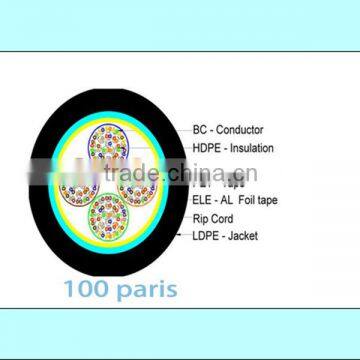

SECTION DRAWING

SPECIFICATION

HYY communication cable specification
conductor			Insulation
pairs	50P		material	HDPE -High density polyethylene
conductors	100 root		Diamter	Φ0.86+/-0.02mm
Wire Gage	24AWG		Polyester Tape :PET-Polyester Tape Wrapping
stranding	solid		Twisted pairs Length			≤155mm
material	BC-bare copper		pairs color code
Diamter	Φ0.5+/-0.01mm		see the <<pair color code chart>>
Jacket			packing
material	LDPE		cable Net Weight		300Kg/km
color	black		product Length		300m/Wooden Drum
Rip Cord	500D*3		500m/Wooden Drum
Nominal thickness		1.5+/-0.05mm	1000m/Wooden Drum
Diamter	Φ16.0+/-0.05mm		Operationg Temperature			below 5°C
maketing	per customer request		Rated Voltage:30V
the advantage :
conductor	solid &stranded soft circle twistesd copper wire
pairs	cabling can meet the defense requirement
jacket	uset hte black PVC
standard	YD/F322,GB/T13849,IEC708-1
