Energy saving floor Heating Cable 2013
- SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | szrunxiang | |
| Model Number | RX-Self-regulating heating cable | Conductor Material | Other, Alloy resistance wire | |
| Insulation Material | Rubber | Jacket | PVC | |
| Application | pipe/underfloor |
Product Description
Specifications
1,Energy saving2,Low charges of installation and working
3,Easy maintaining
4,Automated management
5,No pollution
HEATING CABLE SELF-REGULATING 2013
Technical parameters
1,temperature range: Max maintenance temperature 65°C.
Max surface temperature 70°C±5°C.
Max bearing temperature 105°C.
2,Installation temperature:Min -60°C.
3,Thermo stability:Recycle 300 time from the temperature 10°C to 99°C,the heating value can keep 90% at least.
4,Bend radius:room temperature 20°C,the value is 25.4mm.room temperature −30°C,the value is 35.0mm.
5,Insulation resistance:when the length of heating cable is 100m,ambient temperature is 75°C,tested by 2500V DC tramegger 1 minute,the value of insulation resistance is 1200MΩ.
SPECIFICATION
Product Type | Rated power | Standard length | Nominal resistance | Resistance per meter |
RXRL/1R300/18 | 300 | 16.67 | 161.33 | 9.86 |
RXRL/1R500/18 | 500 | 27.78 | 96.8 | 3.485 |
RXRL/1R550/18 | 550 | 30.56 | 88 | 2.88 |
RXRL/1R700/18 | 700 | 38.89 | 69.14 | 1.778 |
RXRL/1R800/18 | 800 | 44.44 | 60.5 | 1.361 |
RXRL/1R1000/18 | 1000 | 55.56 | 48.4 | 0.871 |
RXRL/1R1100/18 | 1100 | 61.11 | 44 | 0.72 |
RXRL/1R1200/18 | 1200 | 66.67 | 40.33 | 0.605 |
RXRL/1R1300/18 | 1300 | 72.22 | 37.27 | 0.516 |

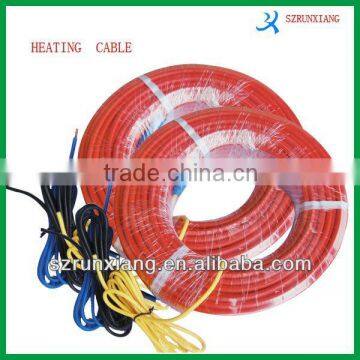

PICTUER
