Home > Products > heating cable > silicone rubber cable maker
silicone rubber cable maker
- SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | szrunxiang | |
| Model Number | RX-Self-regulating heating cable | Conductor Material | Other, Alloy resistance wire | |
| Insulation Material | Rubber | Jacket | PVC | |
| Application | pipe/underfloor |
Product Description
Specifications
1,Energy saving2,Low charges of installation and working
3,Easy maintaining
4,Automated management
5,No pollution
intelligent booster cable /copper ribbon /raychem heat tracing cable /underground cable

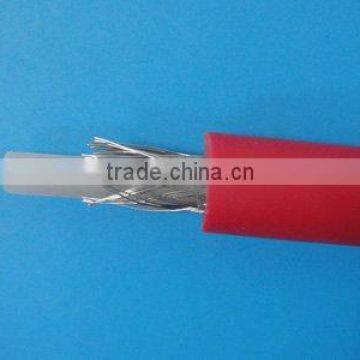

the cross section of the item
DC electric silicone rubber heating cable for defrosing
the product describle
1,Energy saving
2,Low charges of installation and working
3,Easy maintaining
4,Automated management
5,No pollution
the specification of the item
the describletion of the items
| SINGLE HEATING CABLE SPECIFICATION MODEL(220V 18W/M) | ||||||||||||
| Product Type | Rated power (W/ROOT) | Rated voltage (V) | Linear power (W/M) | Standard length (M/ROOT) | Nominal resistance (Ω/ROOT) | |||||||
| RXRL/1R300/18 | 300 | 200 | 18 | 16.67 | 161.33 | |||||||
| RXRL/1R500/18 | 500 | 200 | 18 | 27.78 | 96.8 | |||||||
| RXRL/1R550/18 | 550 | 200 | 18 | 30.56 | 88 | |||||||
| RXRL/1R700/18 | 700 | 200 | 18 | 38.89 | 69.14 | |||||||
| RXRL/1R800/18 | 800 | 200 | 18 | 44.44 | 60.5 | |||||||
| RXRL/1R1000/18 | 1000 | 200 | 18 | 55.56 | 48.4 | |||||||
| RXRL/1R1100/18 | 1100 | 200 | 18 | 61.11 | 44 | |||||||
| RXRL/1R1200/18 | 1200 | 200 | 18 | 66.67 | 40.33 | |||||||
| RXRL/1R1300/18 | 1300 | 200 | 18 | 72.22 | 37.27 | |||||||
| RXRL/1R1400/18 | 1400 | 200 | 18 | 77.78 | 34.57 | |||||||
| RXRL/1R1500/18 | 1500 | 200 | 18 | 83.33 | 32.27 | |||||||
| RXRL/1R1800/18 | 1800 | 200 | 18 | 100 | 26.89 | |||||||
| RXRL/1R2100/18 | 2100 | 200 | 18 | 116.67 | 23.05 | |||||||
| RXRL/1R2300/18 | 2300 | 200 | 18 | 127.78 | 21.04 | |||||||
| RXRL/1R2500/18 | 2500 | 200 | 18 | 138.89 | 19.36 | |||||||
| RXRL/1R2800/18 | 2800 | 200 | 18 | 155.56 | 17.29 | |||||||
| RXRL/1R3000/18 | 3000 | 200 | 18 | 166.67 | 16013 | |||||||
| RXRL/1R150/18 | 150 | 200 | 30 | 5 | 322.67 | |||||||
HEATING CABLE SELF-REGULATING
Technical parameters
1,temperature range: Max maintenance temperature 65°C.
Max surface temperature 70°C±5°C.
Max bearing temperature 105°C.
2,Installation temperature:Min -60°C.
3,Thermo stability:Recycle 300 time from the temperature 10°C to 99°C,the heating value can keep 90% at least.
4,Bend radius:room temperature 20°C,the value is 25.4mm.room temperature −30°C,the value is 35.0mm.
5,Insulation resistance:when the length of heating cable is 100m,ambient temperature is 75°C,tested by 2500V DC tramegger 1 minute,the value of insulation resistance is 1200MΩ.
SPECIFICATION
Product Type | Rated power | Standard length | Nominal resistance | Resistance per meter |
RXRL/1R300/18 | 300 | 16.67 | 161.33 | 9.86 |
RXRL/1R500/18 | 500 | 27.78 | 96.8 | 3.485 |
RXRL/1R550/18 | 550 | 30.56 | 88 | 2.88 |
RXRL/1R700/18 | 700 | 38.89 | 69.14 | 1.778 |
RXRL/1R800/18 | 800 | 44.44 | 60.5 | 1.361 |
RXRL/1R1000/18 | 1000 | 55.56 | 48.4 | 0.871 |
RXRL/1R1100/18 | 1100 | 61.11 | 44 | 0.72 |
RXRL/1R1200/18 | 1200 | 66.67 | 40.33 | 0.605 |
RXRL/1R1300/18 | 1300 | 72.22 | 37.27 | 0.516 |
