Home > Products > Communication cable > Cat6 Cable UTP Indoor Network Cable

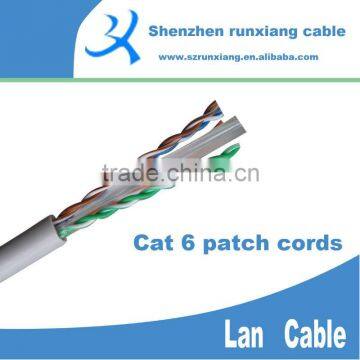

Cat6 Cable UTP Indoor Network Cable
- shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | szrunxiang | |
| Model Number | RX-CAT6 LAN CABLE | Type | Cat 6 | |
| Number of Conductors | 4 |
Product Description
Specifications
Cat6 Cable UTP Indoor Network Cable1.23awg BC Conductor
2.Jacket color ;gray
3.Cat6 utp indoor lan cable
4.PVC jacket
Cat6 Cable UTP Indoor Network Cable
DESCRIPTION
INDUSTRIAL STANDARDS:YD/T1019-2001,USA ANSI/TIA/EIA-568-B,WORLD WIDE ISO/IEC 11801-71156.
Conductor: Solid &Stranded soft circle twisted copper wire
Insulation : PE
Jacket : Polyvinyl chloride (PVC),LSZH,PE.
We can provide all kinds of colors according to customer's requirements.Rip wire (Optional)
Rating Temperature :75°C
Applications:
ISDN,10BASE-T Ethernet(IEEE802..3),
100BASE-T -Ethernet(IEEE802..3),155MbpsATM,100Vg-AnyLAN(IEE802.12)TP-PMD(ANSI X3T9.5),16Mbps Token Ring(IEEE802.5),1000BASE-T -Ethernet(IEEE802..3ab).
SPECIFICATION
CAT 6 LAN CABLE | ||||||||
NO. | TYPE | CONDUCTOR | PAIRS NO. | SHIELD | MYLAR | DRAIN WIRE | JACKET | |
AWG | NO./DIAMETER | |||||||
| NO/MM | |||||||
SZRXLD6U2301 | UTP | 23 | 1/0.57 | 4 |
|
|
| PVC |
SZRXLD6F2301 | FTP | 23 | 1/0.57 | 4 | AL foil | PET | Solid tinned copper | PVC |
SZRXLD6U2301 | UTP | 23 | 7/0.25 | 4 |
|
|
| PVC |
SZRXLF2301 | FTP | 23 | 7/0.25 | 4 | AL foil | PET | Solid tinned copper | PVC |
SZRXLF2301W | FTP(OUTDOOR) | 23 | 1/0.57 | 4 | AL foil | PET | Solid tinned copper | PE |
SZRXLSF2301 | SFTP | 23 | 1/0.57 | 4 | Braiding+AL foil | PET | Solid tinned copper | PVC |
SZRXLSF2301 | SFTP | 23 | 7/0.25 | 4 | Braiding+AL foil | PET | Solid tinned copper | PVC |
