Stranded loose tube GYHTY fiber optic cable price

FOB Price

USD $0.2 - $0.8 / Meter

10000 Meters(Min.Order)

Supply Ability 500 Kilometer / Kilometers per Month
Port Shenzhen China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	RUX
Model Number	GYHTY

Product Description

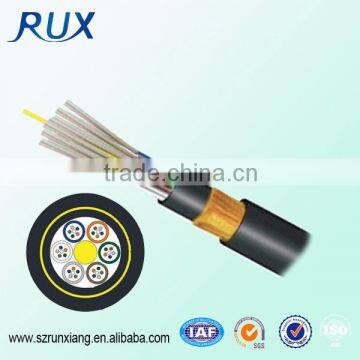

Photos show

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYHTY-2~6	2~6	1	5	11.0	100	600/1500	300/1000	10D/20D
GYHTY-8~12	8~12	2	4	11.0	100	600/1500	300/1000	10D/20D
GYHTY-14~18	14~18	3	3	11.0	100	600/1500	300/1000	10D/20D
GYHTY -20~24	20~24	4	2	11.0	100	600/1500	300/1000	10D/20D
GYHTY-26~30	26~30	5	1	11.0	100	600/1500	300/1000	10D/20D
GYHTY-32~36	32~36	6	0	11.0	100	600/1500	300/1000	10D/20D

Product Description

Stranded loose tube GYHTY fiber optic cable price puts 250μm fiber in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. Then, a layer of aramid yarn is applied as additional strength member and the cable is completed with a polyethylene (PE) outer sheath.

Our Services

1.Professional fiber optic cable manufacturer for many years

2.Customized is availble

3.Competitve price with high quality

4.Quick delivery time

Packaging & Shipping
